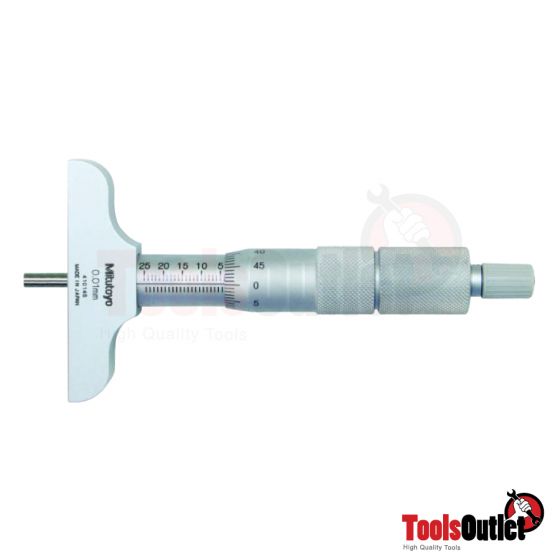

Depth Micrometer ไมโครมิเตอร์วัดลึก Mitutoyo รุ่น 129-154
This interchangeable rod type micrometer can be used for wide range measurements.
It offers you the following benefits:
- ø4mm interchangeable rods, with lapped measuring surfaces, enable you to make wide-range measurement
- The ratchet stop provides constant measuring force.
- Measuring rod lock.
| ORDER NO.: | 129-154 |
| Range: | 0 - 25 mm |
| Flatness of reference surface (base): | 1.3 µm |
| Flatness of measuring face (rod): | 0,3 µm |
| Number of rods: | 1 |
| Graduation: | 0,01 mm |
| Mass: | 240 g |
| Measuring span: | 25 mm |
| Spindle pitch: | 0,5 mm, with spindle lock |
| Micrometer Head Feed (0-25 mm): | ±3 µm |
| Zero point errors of rods: | ±4 µm (0-150 mm) ±6 µm (0-300 mm) |
| Parallelism between measuring face (rod) and reference surface (base) | (4+ L/50) µm L=max. measuring length (mm) |
| Measuring face: |
Hardened, precision ground, micro-lap finish
|
| Base: | Hardened tool steel |
| Scale: | Thimble and sleeve satin chrome finish ø18 mm |
| Delivered: | Including box, spanner no. 301336, 04GAA274, hex-spanner no. 202863 |
| Digital/Analog: | Analog |
| Inch-Metric: | Metric |
ไม่ระบุ
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
