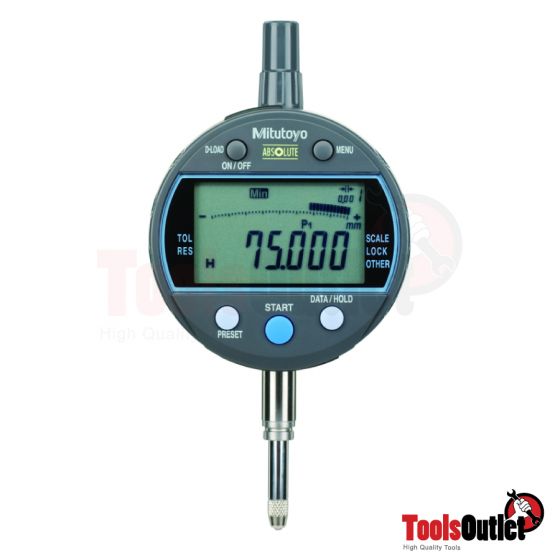

Digital Indicator ไดอัลเกจแบบดิจิตอลรุ่น Mitutoyo รุ่น 543-310B
สินค้าหมด
รหัสสินค้า
1MIT-543-310B
ราคาพิเศษ
฿10,968.57
ราคาปรกติ
฿15,669.39
This indicator is designed for inside diameter measurement applications on bore gauges
It offers the following benefits:
- Minimum value holding function that allows you to easily detect a hole diameter
- Analogue bar graph in the display (12 different scales switchable)
- The analogue bar graph enhances usability by adding a dial gauge “feel” to digital measurement
- GO/±NG tolerance judgement function
- A fast measurement frequency mode(detection cycle 20ms or 50times/s) is selectable to measure in the peak detection mode more reliably
- Easy indicator setup via a setup menu
- A USB interface box can be used to set up the indicator from PC via dedicated software
| ORDER NO. | 543-310B |
| Range: |
12,7 mm
|
| Maximum Permissible Error E MPE: | 0,003 mm |
| H MPE (Hysteresis): | 0,002 mm |
| R MPE (Repeatability): | 0,002 mm |
| Type: | EN ISO Standard |
| Measuring force: | ≤ 1,5 N |
| Protection: | IP42 |
| Mass: | 170 g |
| Display: | LCD, character height: 8 mm, rotatable 330° |
| Max. response speed: | Unlimited |
| Measurement frequency (MAX/MIN/RANGE): | Standard mode: 10 times/s fast mode: 50 times/s (plunger speed max. 50 µm/s for peak measurement) |
| Alarm: | Low voltage composition error, overflow error, tolerance limit setting error |
| Stem Ø: |
8 mm
|
| Contact point: |
Carbide ball, thread M 2.5 x 0.45 mm
|
| Battery life: | Standard mode: approx. 1 year fast mode: approx. 4.5 month |
| Power supply: | 1 battery CR-2032 |
| DATA/HOLD: | Yes |
| PRESET 3x: | Yes |
| MIN Value Hold: | Yes |
| ON/OFF: | Yes |
| Function lock: | Yes |
| GO/±NG judgement: | Yes |
| Power supply report: | UN 38.3 Test Summary Report |
| Digital/Analog: | Digital |
| Inch-Metric: | Metric |
| Hysteresis: |
0,002 mm
|
| Data output: | Yes |
| Delivered: |
Including 1 battery
|
ไม่ระบุ
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
