1/4" Square Drive Sockets with Metric Bi-Hex Profile ลูกบ๊อกรู 1/4"-12 เหลี่ยม BAHCO รุ่น A6700DM
- Knurled shank for finger turning of free running fasteners
- Applicable to nuts and bolts used in the aerospace industry
- Not suitable for machine operation or power tools
- Highly polished finish
- High-performance alloy steel
- Less wear of the fastener thanks to Dynamic-Drive™ profile
- Maximum load distribution and torque from the additional flank area
- Thin walled for better accessibility
- Standards: ISO 2725/1174 and DIN 3124/3120
 |
| Product |  |

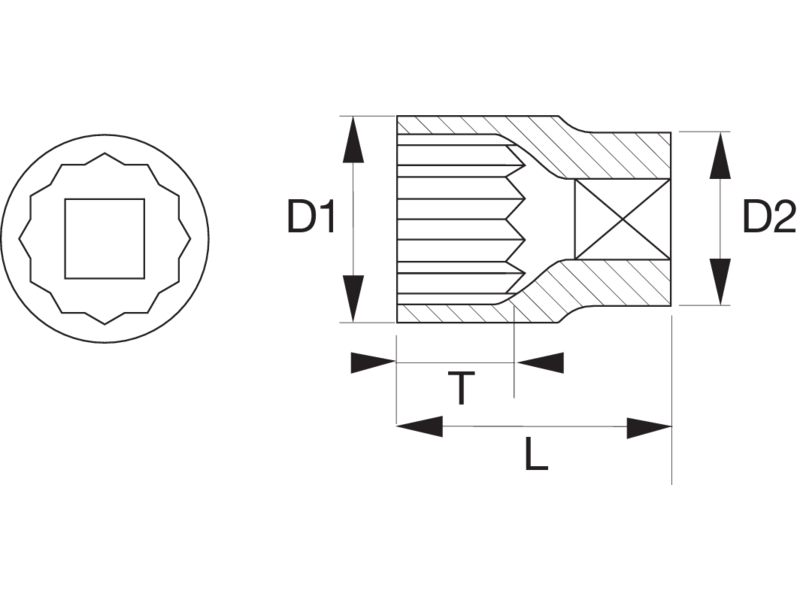

L | D1 | D2 | T | g |
| A6700DM-9 | 9 mm | 24.7 mm | 13.4 mm | 12.4 mm | 8 mm | 14 g |
| A6700DM-12 | 12 mm | 24.7 mm | 16.9 mm | 15 mm | 11.5 mm | 20 g |
| A6700DM-13 | 13 mm | 24.7 mm | 18 mm | 15.6 mm | 11.5 mm | 25 g |
ไม่ระบุ
| ยี่ห้อ เครื่องมือช่าง | BAHCO |
|---|---|
| BRANDS | BAHCO |
