Bore Gage บอร์เกจ (0.01X100-160mm) Mitutoyo รุ่น 511-714-20
สินค้าหมด
รหัสสินค้า
1MIT-511-714-20
ราคาพิเศษ
฿6,826.60
ราคาปรกติ
฿9,752.29
This is a short range application Bore Gauge Set that automatically self-centres via a centring bridge and offers you the following benefits:
- It reduces the influence of heat from the operator's hand by 50% by making the grip hollow structured, thereby retaining high accuracy measurement.
- Interchangeable washers (0,5 mm thick) are supplied as standard accessories, so you can enable setting in small steps.
- Contact points are carbide (>18 mm range), giving you high durability and wear resistance.
| Inch-Metric: |
Metric
|
| Digital/Analog: |
Analog
|
| Range: |
100–160 mm
|
| No. Dial Indicator: |
2046AB
|
| Stroke of contact point: |
1.6 mm
|
| Graduation: |
0.01 mm
|
| Accuracy: |
2 µm
|
| Repeatability: |
0.5 μm
|
| Measuring depth: |
150 mm
|
| Measuring force: |
≤5 N
|
| Number of anvils: |
13
|
| Delivered: |

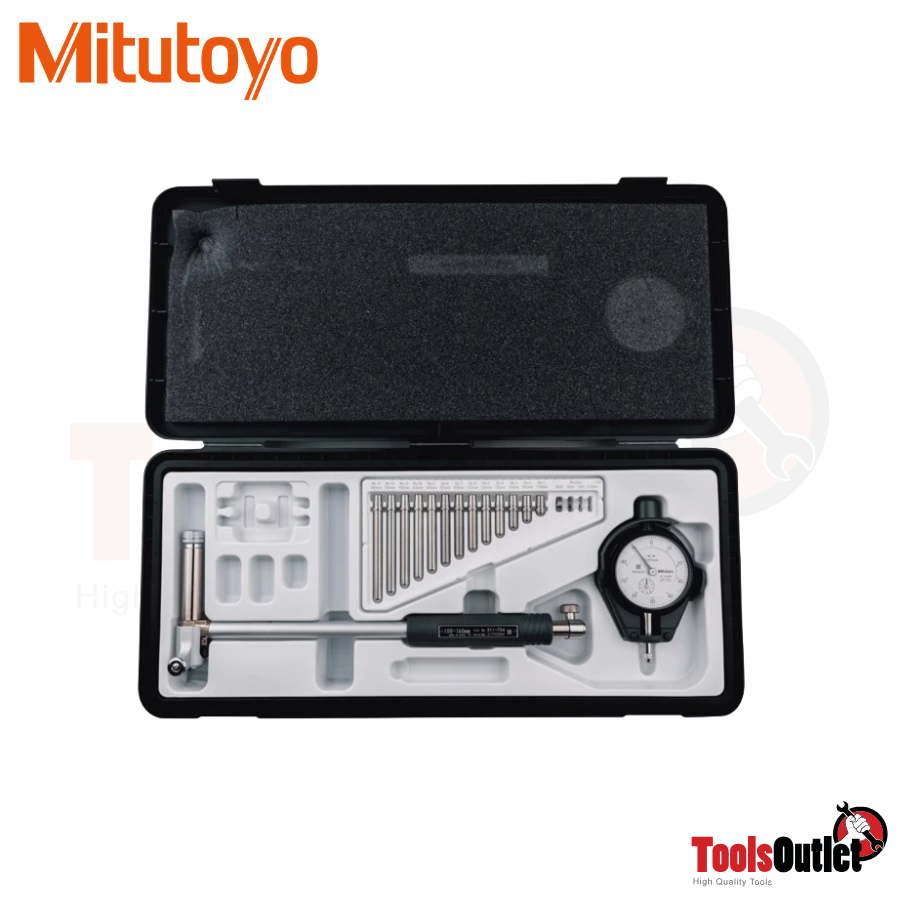

In a box with bore gauge 511-704, dial indicator 2046AB, plastic cover for indicator 21DZA000, 13 anvils, 4 interchangeable washers
|
| Mass: |
480 g
|
 |

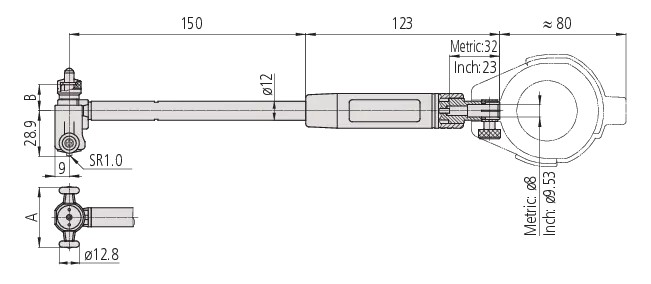

| A: 50 mm B: 66.5 mm |
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
