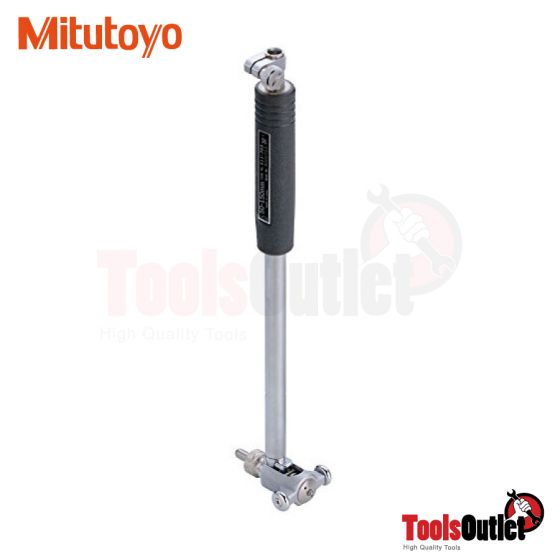

Bore Gage บอร์เกจ Mitutoyo รุ่น 511-703
BORE GAGE SERIES 51
Order No.: 511-703
Range: 50-150 mm
Description:
• Longer plunger stroke with no effect on accuracy.
• Carbide is used for the contact point ensuring high durability and wear resistance.
• This model reduces the influence of heat from the operator’s hand by 50% by increasing the grip size and making the grip hollow-structured, thereby retaining high-accuracy measurement.
• The indicator (dial indicator, Digimatic indicator) and dial protection cover are optional. Select an indicator from the recommended dial indicators and Digimatic indicators. Please contact us for advice when using an indicator other than the recommended indicators.
• Optional Extension Rods can be attached for measuring deep holes.
• A Bore Gage Checker and a range of Setting Rings are available to aid in accurately setting a gage before making a measurement.
| ORDER NO.: | 511-703 |
|---|---|
| Range: | 50 - 150 mm |
| Stroke of contact point : | 1.6 mm |
| Measuring force (N): | 5 or less |
| Guide force (N): | 10 or less |
| Bore gage: | 511-703 |
| Dial indicator: | Not supplied |
| Dial protection cover: | Not supplied |
| Anvil: | 11 pcs. |
| Interchangeable Washer : | 4 pcs. |
| Sub-Anvil: | 1 pc. |
| Spanner: | Not supplied |
| Probing depth: | 150 mm |
