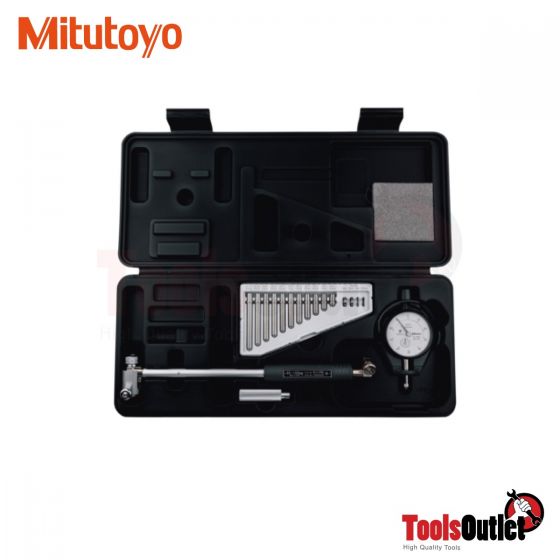

Bore Gage บอร์เกจ Mitutoyo รุ่น 511-713-20 (0.01X50-150มิล)

สินค้าหมด
รหัสสินค้า
1MIT-511-713-20
ราคาพิเศษ ฿6,642.56 ราคาปรกติ ฿9,489.37

This is a short range application Bore Gauge Set that automatically self-centres via a centring bridge and offers you the following benefits:

  • It reduces the influence of heat from the operator's hand by 50% by making the grip hollow structured, thereby retaining high accuracy measurement.
  • Interchangeable washers (0.5 mm thick) are supplied as standard accessories, so you can enable setting in small steps.
  • Contact points are carbide (>18 mm range), giving you high durability and wear resistance.
Inch-Metric: Metric
Range: 50 - 150 mm
Graduation: 0.01 mm
Stroke of contact point: 1.6 mm
Measuring depth: 150 mm
No. Dial Indicator: 2046AB
Number of anvils: 11
Accuracy: 2 µm
Repeatability: 0.5 µm
Delivered: Including box, dial indicator, plastic cover for indicator
Digital/Analog: Analog
Mass: 420 g
ข้อมูลเพิ่มเติม
ยี่ห้อ เครื่องมือวัด Mitutoyo
BRANDS MITUTOYO
