Bore Gage บอร์เกจ Mitutoyo รุ่น 511-721-20 (0.001X18-35มิล)
พร้อมส่ง
รหัสสินค้า
1MIT-511-721-20
ราคาพิเศษ
฿7,486.79
ราคาปรกติ
฿10,695.41

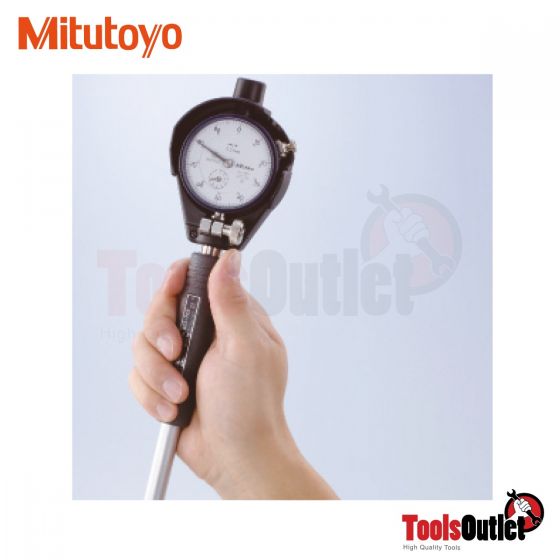

This is a short range application Bore Gauge Set that automatically self-centres via a centring bridge and offers you the following benefits:
- It reduces the influence of heat from the operator's hand by 50% by making the grip hollow structured, thereby retaining high accuracy measurement.
- Interchangeable washers (0,5 mm thick) are supplied as standard accessories, so you can enable setting in small steps.
- Contact points are carbide (>18 mm range), giving you high durability and wear resistance.
| Order No. | 511-721-20 |
| Range: |
18 - 35
|
| Graduation: |
0.001 mm
|
| Stroke of contact point: |
1.2 mm
|
| Accuracy: |
2 µm
|
| Accuracy: |
2 µm
|
| Repeatability: |
0,5 µm
|
| Number of anvils: |
9
|
| Measuring depth: |
100 mm
|
| No. Dial Indicator: |
2109AB-10
|
| Delivered: |
Including box, dial indicator, plastic cover for indicator
|
| Digital/Analog: |
Analog
|
| Mass: |
330
|
| Inch-Metric: |
Metric
|
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
