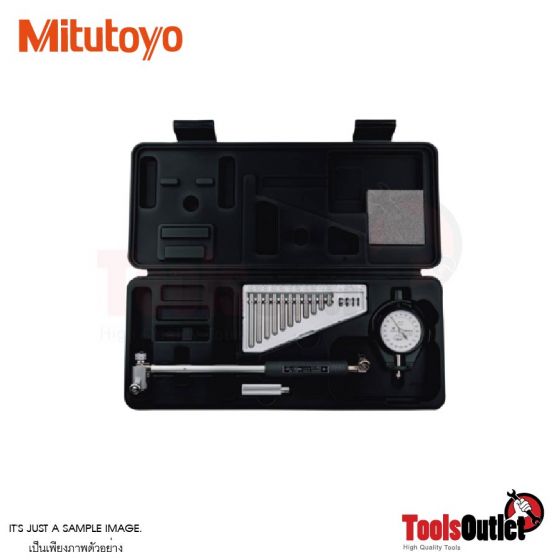

Bore Gage บอร์เกจ Mitutoyo รุ่น 511-723-20 (0.001X50-150มิล)

สินค้าหมด
รหัสสินค้า
1MIT-511-723-20
ราคาพิเศษ ฿8,795.40 ราคาปรกติ ฿12,564.86

This is a short range application Bore Gauge Set that automatically self-centres via a centring bridge and offers you the following benefits:

  • It reduces the influence of heat from the operator's hand by 50% by making the grip hollow structured, thereby retaining high accuracy measurement.
  • Interchangeable washers (0,5 mm thick) are supplied as standard accessories, so you can enable setting in small steps.
  • Contact points are carbide (>18 mm range), giving you high durability and wear resistance.
Code No 511-723-20
Range (mm) 50 - 150
Stroke of contact point (mm) 1.6
Accuracy* (μm) 2
Repeatability*(μm) 0.5
Adjacent error*(μm) 1
Measuring force (N) 5 or less
Guide force (N) 10 or less
Dial indicator 2109AB-10
(Graduation: 0.001 mm)
ไม่ระบุ
ข้อมูลเพิ่มเติม
ยี่ห้อ เครื่องมือวัด Mitutoyo
BRANDS MITUTOYO
