Bore Gage บอร์เกจ Mitutoyo รุ่น 511-726-20 (250-400X0.001 มม.)
สินค้าหมด
รหัสสินค้า
1MIT-511-726-20
ราคาพิเศษ
฿13,621.10
ราคาปรกติ
฿19,458.71

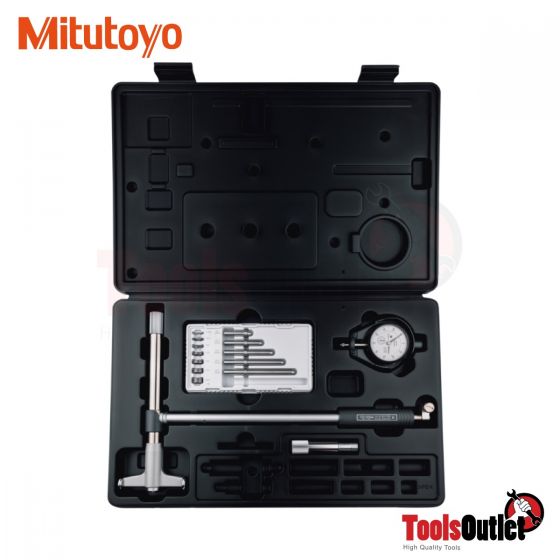

This is a short range application Bore Gauge Set that automatically self-centres via a centring bridge and offers you the following benefits:
- It reduces the influence of heat from the operator's hand by 50% by making the grip hollow structured, thereby retaining high accuracy measurement.
- Interchangeable washers (0,5 mm thick) are supplied as standard accessories, so you can enable setting in small steps.
- Contact points are carbide (>18 mm range), giving you high durability and wear resistance.
| Order No. | 511-726-20 |
| Range (mm) | 250 - 400 |
| Stroke of contact point (mm) | 1.6 |
| Accuracy* (µm) | 2 |
| Repeatability* (µm) | 0.5 |
| Adjacent error* (µm) | 1 |
| Measuring force (N) |
6 or less |
| Guide force (N) |
15 or less |
ไม่ระบุ
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
