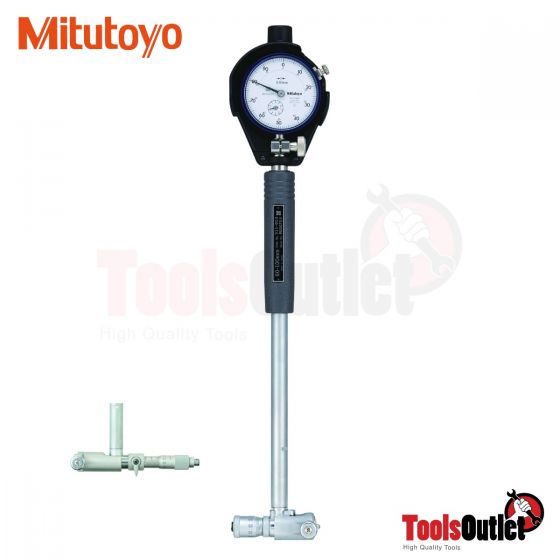

Bore Gage บอร์เกจ Mitutoyo รุ่น 511-826-20 (0.001X250-400มิล)
สินค้าหมด
รหัสสินค้า
1MIT-511-826-20
ราคาพิเศษ
฿19,786.44
ราคาปรกติ
฿28,266.34
This is a micrometer head that enables measurements without interchangeable anvils.
It offers you the following benefits:
- A long plunger stroke gives you amazing accuracy.
- Contact points are carbide (>18 mm range), giving you high durability and wear resistance.
- A large grip reduces heat transfer from the operator by 50%.
- Wide measuring range with sub-anvils.
| Inch-Metric: |
Metric
|
| Range: |
250 - 400 mm
|
| Graduation: |
0.001 mm
|
| Measuring depth: |
150 mm
|
| No. Dial Indicator: |
2109AB-10
|
| Micrometer Head stroke: |
25 mm
|
| Mass: |
950 g
|
| Accuracy: |
2 µm
|
| Repeatability: |
0.5 µm
|
| Sub anvils: |
25, 50, 50 mm
|
| Delivered: |
Including box, dial indicator, plastic cover for indicator
|
| Digital/Analog: |
Analog
|
 |

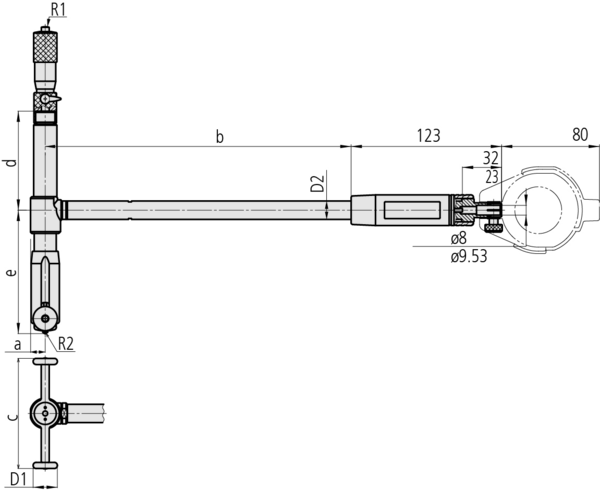

a: 12 mm b: 250 mm c: 90 mm d: 81 mm |
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
