Bore Gages บอร์เกจ (18-35mm) (ไม่มีไดอัลเกจ) MITUTOYO รุ่น 511-701

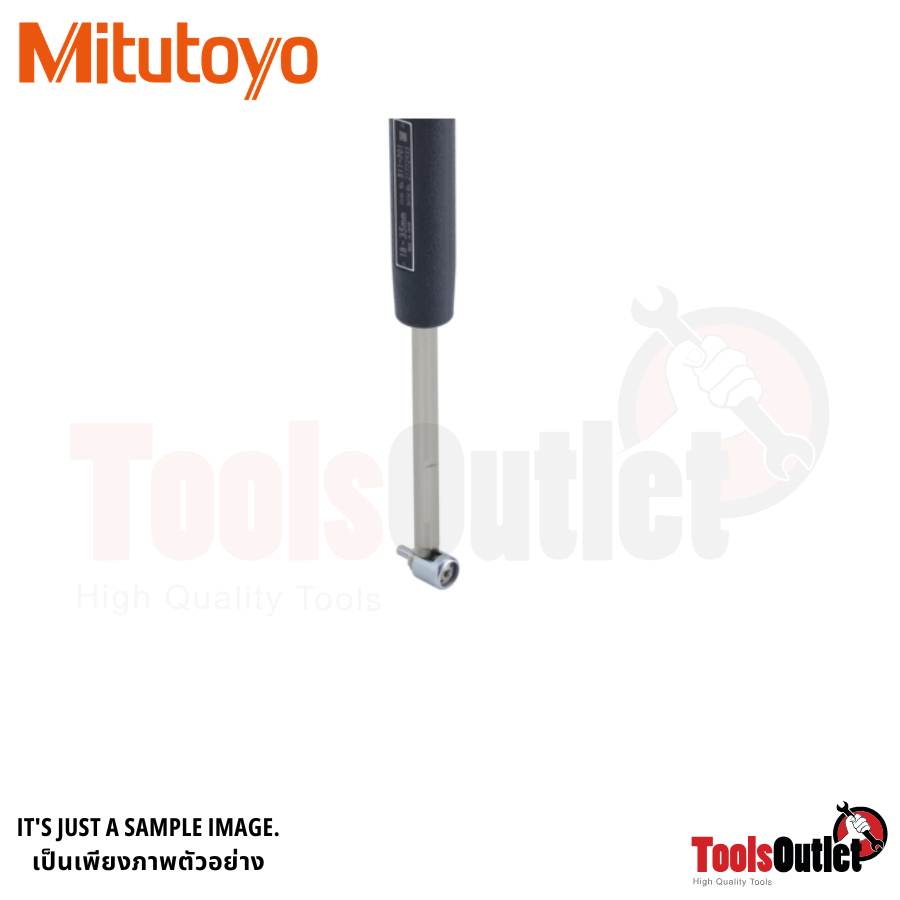

A Mitutoyo bore gauge designed exclusively for ID measurement. No dial gauge is supplied to allow for a specific choice to best suit the application. Interchangeable anvils enable a wide range of diameter measurement. Tungsten carbide contact point ensures high durability and wear resistance. High-accuracy measurement is aided by a large grip with a sponge-like structure that reduces heat transfer from the operator's hand by 50%. Optional extension rods can be attached for measuring inside deep holes.
 |
| Inch-Metric: |
Metric
|
| Digital/Analog: |
Analog
|
| Range: |
18–35 mm
|
| Stroke of contact point: |
1,2 mm
|
| Accuracy: |
2 µm
|
| Repeatability: |
0,5 μm
|
| Measuring depth: |
100 mm
|
| Measuring force: |
≤4 N
|
| Number of anvils: |
9
|
| Delivered: |

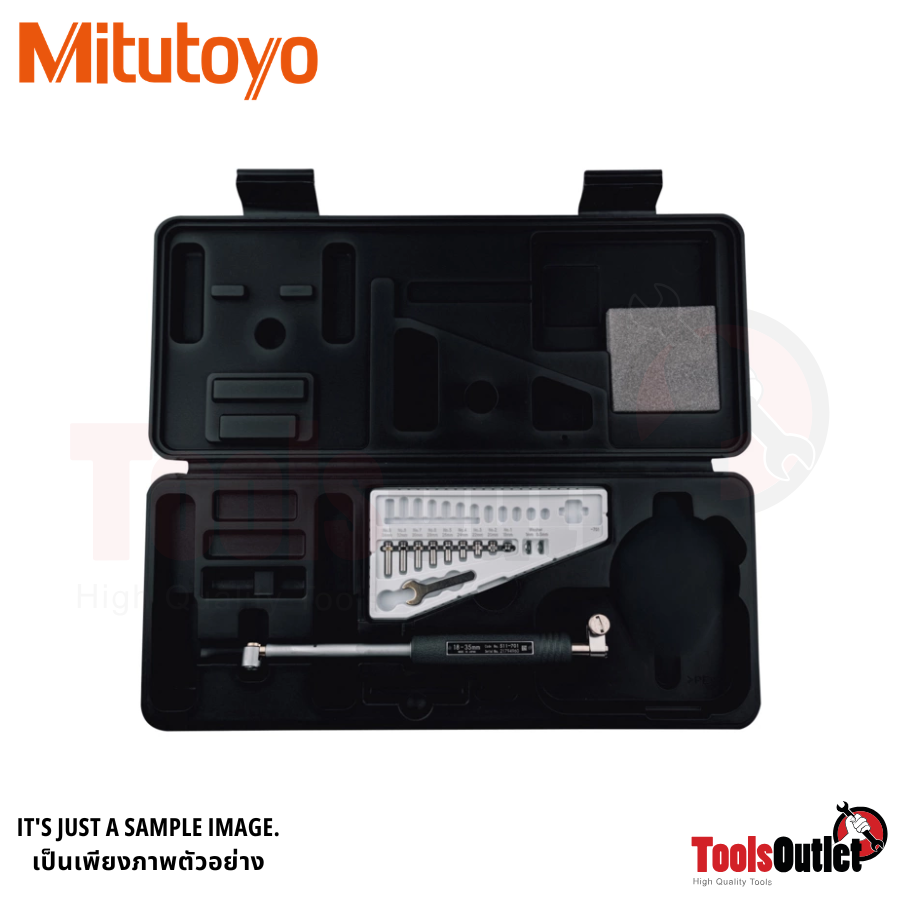

In a box with 9 anvils and 2 interchangeable washers and spanner 102148
|
| Mass: |
160 g
|
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
