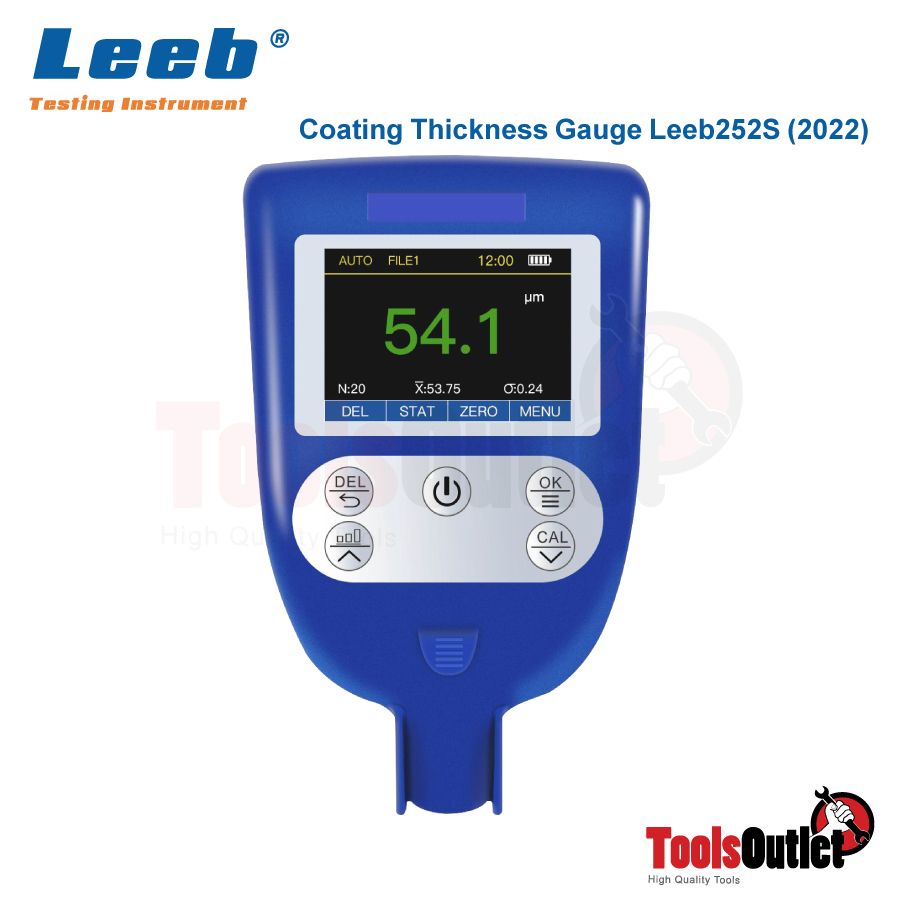

Coating Thickness Gauge เครื่องวัดความหนาผิวเคลือบ LEEB รุ่น 252S
Functions & Features
- New system with multi-function & high accuarcy.
- Integraded with Fe and NFe in one probe.
- LED display. Fast test. Easy for operation.
- Automatic Statistics data: MEAN, MAX, MIN, S.DEV and Test NO.
- Data storage and delete. Memory: 500 units of data.
- Limits settings: auto alarming for the measurements out of range
- Switch off automatically or manually.
Functions & Features
- New system with multi-function & high accuarcy.
- Integraded with Fe and NFe in one probe.
- LED display. Fast test. Easy for operation.
- Automatic Statistics data: MEAN, MAX, MIN, S.DEV and Test NO.
- Data storage and delete. Memory: 500 units of data.
- Limits settings: auto alarming for the measurements out of range
- Switch off automatically or manually.
Measuring Materials

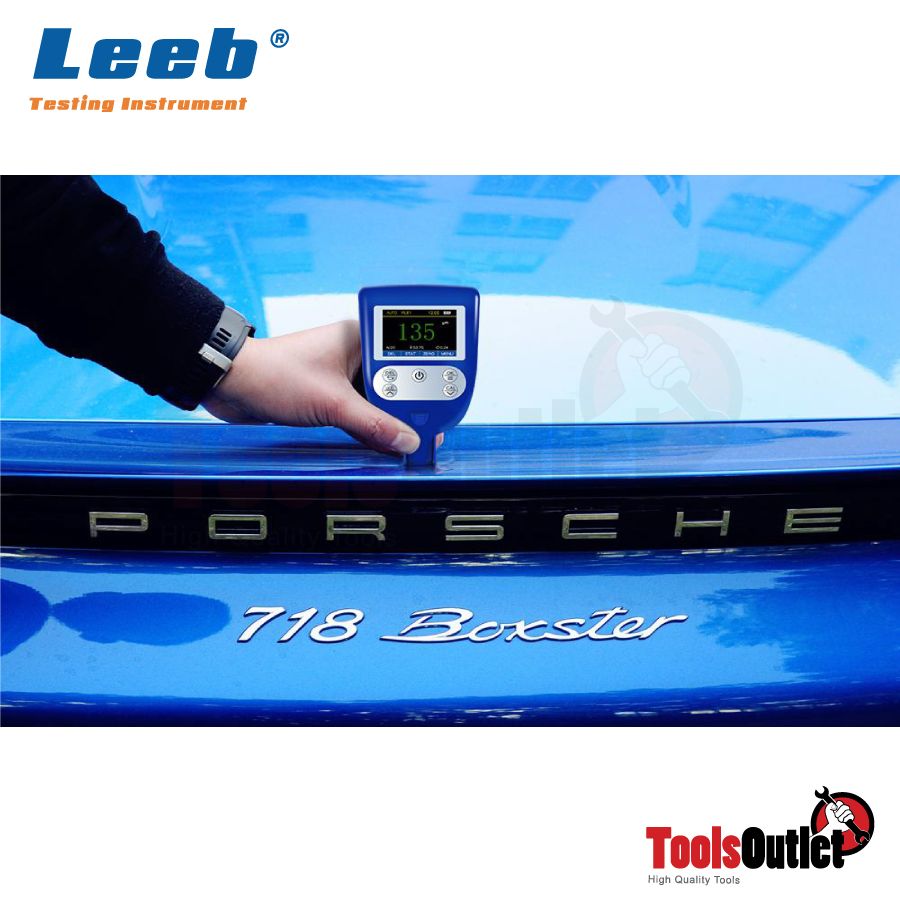

- Magnetic Induction (Fe): Non-magnetic coating on magnetic metal substrate, such as aluminum, chromium,
copper, zinc, rubber, paint on the base of steel, iron, alloy and magnetic steel . - Eddy Current (NFe): Non-conductive coating on non-magnetic metal substrate, such as rubber, plastic, paint,
oxide on the base of aluminum, copper, zinc, tin.
| Model No. | Leeb252S |
| Measuring principle | Fe & NFe |
| Measuring range (μm) | 0~1500μm |
| Accuracy | ±(2%H+1) μm; H refers to the thickness of testing piece |
| Min thickness of Substrate (mm) | 0.5 |
| Minimum resolution (μm) | 0.1μm ( 0-100μm); 1μm ( 100-1500μm) |
| Min curvature of the min area (mm) | Fe: Convex1.5 Concave25 / NFe: Convex3 Concave50 |
| Temperature | 0~40℃ |
| Environment | No strong magnetic field |
| Dimensions | 115*70*23 mm |
| Net Weight | 120g |
| Power supply | 2*1.5v AAA battery |

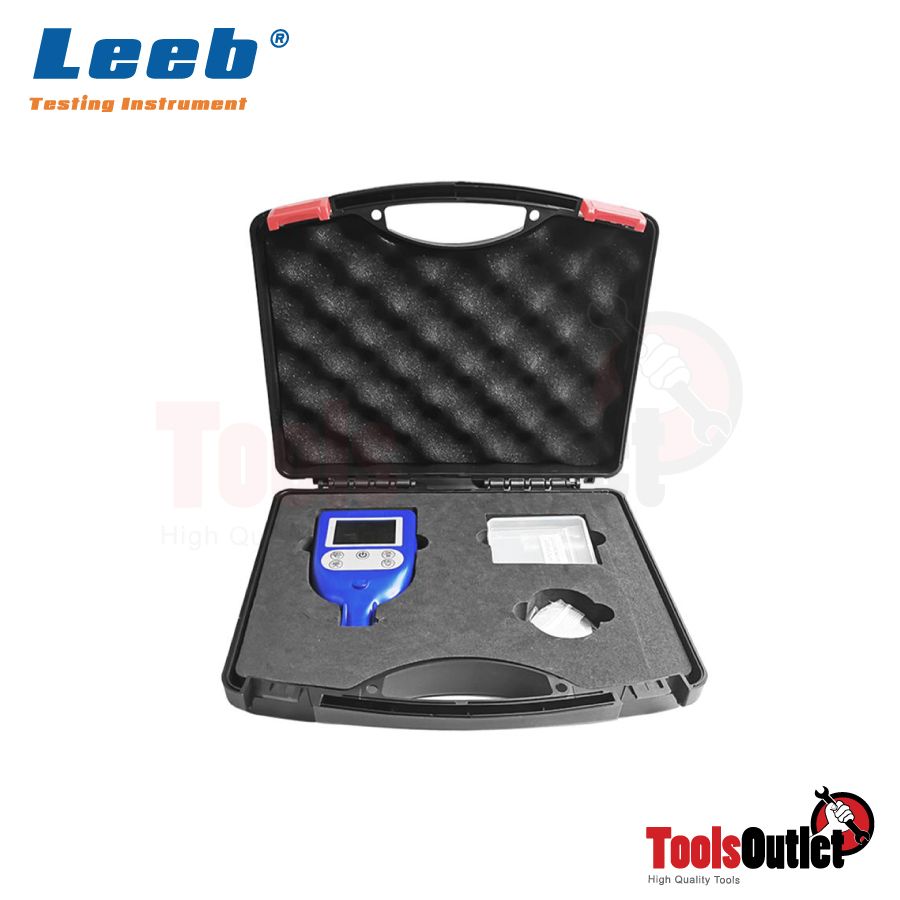

| Standard Configuration | Main Machine, Calibration specimens*5, FE & NFE Substrate, Users’ Manual, Qualified Certificate, Packing list, Warranty card |
ไม่ระบุ
| ยี่ห้อ เครื่องมือวัด | LEEB |
|---|---|
| BRANDS | LEEB |
