Coating Thickness Gauge เครื่องวัดความหนาผิวเคลือบเหล็ก LEEB รุ่น UEE922-FE
Function & Feature
• With high quality metal probes and shell.
• Large memory to save 4 types of materials and 1560 testing va lues.
• Software for PC connection and data transmission, analysis.
• Two measuring methods: continuous and single;
• Two working mode: direct and batch;
• Limit setting function.
• Switch off automatically or manually.
• 3 ways for easy Calibration: by one specimen, two specimens o r five specimens to finish calibration.
• Five statistics: Average, Max, Min, Testing times, Standard deviation.
• Standard delivery with 5 calibration specimens (48.5m, 99.8m, 249m, 513m, 1024m)
Measuring Materials
• Magnetic Induction (Fe): Measuring the thickness of Non-magne tic coating on magnetic metal substrate, such as
aluminum, Chromium, copper, zinc, rubber, paint on the base of steel, iron, alloy and magnetic steel.
• Eddy Current (NFe): Measuring the thickness of Non-conductive coating on non-magnetic metal substrate, such as
rubber, plastic, paint oxide on the base of aluminum, copper , zinc, tin.
Technical Parameters
| Model No. | UEE922 |
| Measuring principle | Magnetic induction (Fe) & Eddy current (NFe) |
| Measuring range (μm) | 0~1250μm |
| Probe | Changeable |
| Shell | Metal |
| Accuracy | ±(2%H+1) μm; H refers to the thickness of testing piece |
| Minimum resolution (mm) | 0.1μm |
| Min Curvature of the min area (mm) | Convex1.5 Concave9 |
| Diameter of the min area (mm) | Φ7 |
| Critical thickness of substrate (mm) | 0.5 |
| Memory | 1560 |
| Dimensions | 130*70*30mm |
| Power supply | 2*AA Alkaline battery |
| Standard Configuration | Main Machine, probe*1(Fe or NFe), substrate*1(Fe or NFe), software & USB, Calibration specimens*5, Users’ Manual, Qualified Certificate, Coin screwdriver, AA battery*2, Packing list, Warranty card |
| Optional Accessories | Probes,Specimens |
Pictures
 |
 |
 |

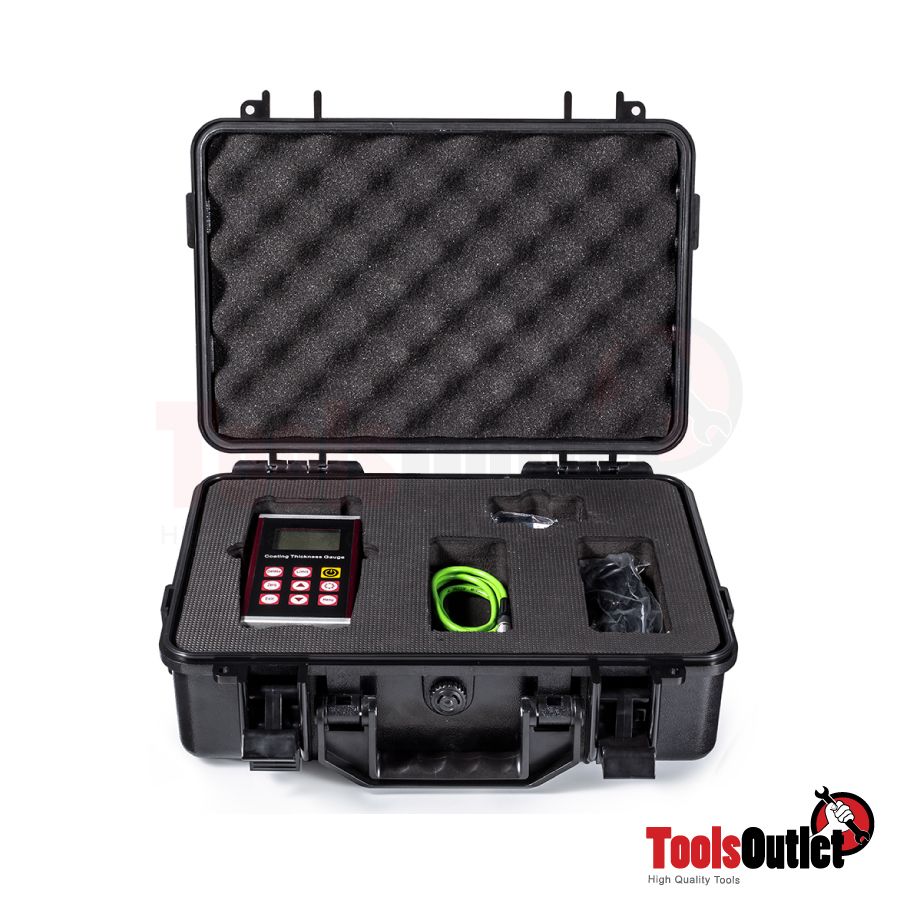

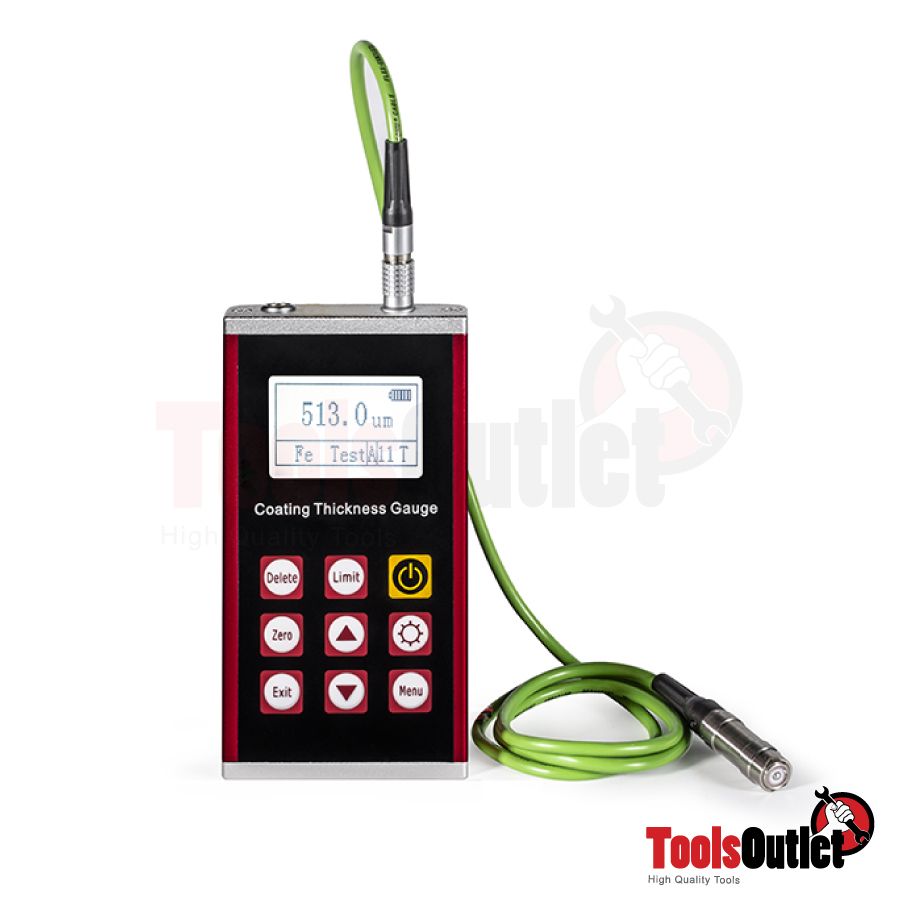

| PC Software | Measuring 513um Specimen | Water-proof Box |
