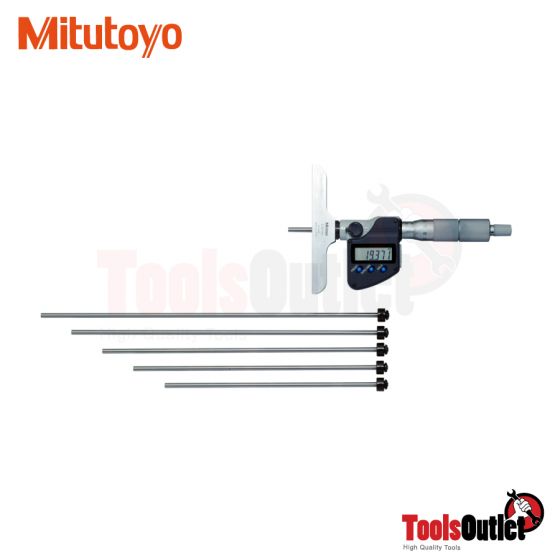

Depth Micrometer ไมโครดิจิตอลวัดลึกรุ่น Mitutoyo รุ่น 329-250-30 (0-150 มม.)
สินค้าหมด
รหัสสินค้า
1MIT-329-250-30
ราคาพิเศษ
฿12,193.72
ราคาปรกติ
฿17,419.60
This interchangeable rod type micrometer can be used for wide range measurements.
It offers you the following benefits:
- ø4mm interchangeable rods, with lapped measuring surfaces, enable you to make wide-range measurement
- The ratchet stop provides constant measuring force.
- Measuring rod lock.
| ORDER NO | 329-250-30 |
|
Range:
|
0 - 150 mm
|
|
Flatness of reference surface (base):
|
2 µm
|
|
Flatness of measuring face (rod):
|
0,3 µm
|
|
Base (W x T):
|
101.6 x 16 mm
|
|
Number of rods:
|
6
|
|
Mass:
|
540 g
|
|
Scale:
|
Thimble and sleeve satin chrome finish, ø18 mm
|
|
Measuring span:
|
25 mm
|
|
Spindle pitch:
|
0,5 mm with spindle lock
|
|
Zero point errors of rods:
|
±4 µm (0-150 mm)
±6 µm (0-300 mm) |
|
Micrometer Head Feed (0-25 mm) (excluding quantizing error):
|
±3 µm
|
|
Parallelism between measuring face (rod) and reference surface (base):
|
(4+L/50) µm
L = max. measuring length (mm) |
|
Measuring face:
|
Hardened, precision ground, micro-lap finish
|
|
Base:
|
Hardened tool steel
|
|
Battery life:
|
Approx. 2,4 years
|
|
Delivered:
|
Including box, spanner no. 301336, 04GAA274, hex-spanner no. 202863, 1 SR-44 battery
|
|
DATA (output with cable) / HOLD (display value):
|
Yes
|
|
Lock function:
|
Yes
|
|
Auto Power OFF
after 20 min. non use: |
Yes
|
|
2 x PRESET:
|
Yes
|
|
Low voltage alarm:
|
Yes
|
|
Data output:
|
Yes
|
|
ZERO/ABS:
|
Yes
|
|
Digital/Analog:
|
Digital
|
|
Inch-Metric:
|
Metric
|
 |
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
