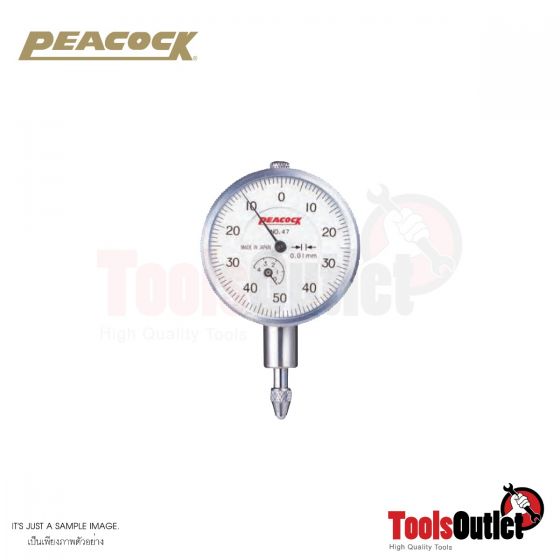

Dial Gauge ไดอัลเกจ Peacock รุ่น 47
Dial Gauge ไดอัลเกจ Peacock รุ่น 47
- Contact point ( X-107 )
- Lug back
- Dial dia. Ø36mm
- Contact point ( X-107 )
- Lug back
- Dial dia. Ø36mm
Specifications
| Model |
Graduation (mm) |
Range (mm) |
Readin | Indication error (MPE) (µm) | Hysteresis error (µm) |
Repeatability (µm) |
Measuring force less than (N) |
|||
| Revolution |
Whole measuring range |
|||||||||
| 1/10 | 1/2 | One | ||||||||
| 47 | 0.01 | 4 | 0 -50- 0 | 8 | 12 | 14 | 18 | 4 | 3 | 1.4 |
Dimensions (mm)
|
Model |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
|
47 |
39.6 |
20 |
9.7 |
36 |
13 |
15 |
3.5 |
6.5 |
32 |
8.0 |
ไม่ระบุ
| ยี่ห้อ เครื่องมือวัด | Peacock |
|---|---|
| BRANDS | PEACOCK |
