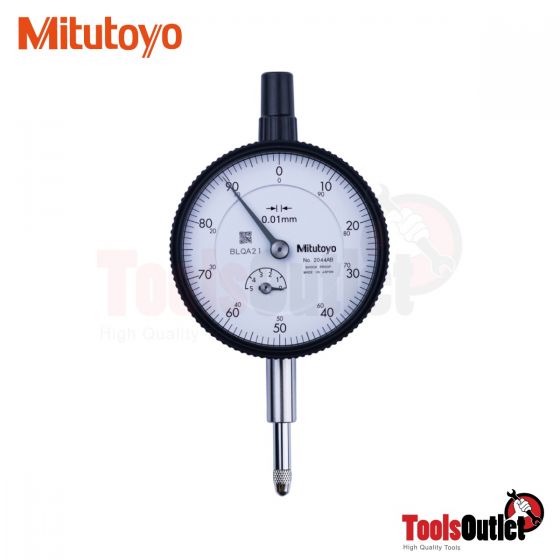

Dial Gauge ไดอัลเกจ Mitutoyo รุ่น 2044A (0-5X0.01 มม.)
Standard Type, 5 mm Range, 0.01 mm Graduation
This is a standard dial indicator. It offers you the following benefits:
- Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
- No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.
| Digital/Analog: |
Analog
|
| Inch-Metric: |
Metric
|
| Functions: |
ISO type
|
| Range: |
5 mm
|
| Range per rev.: |
1 mm
|
| Graduation: |
0.01 mm
|
| Graduation: |
0.01
|

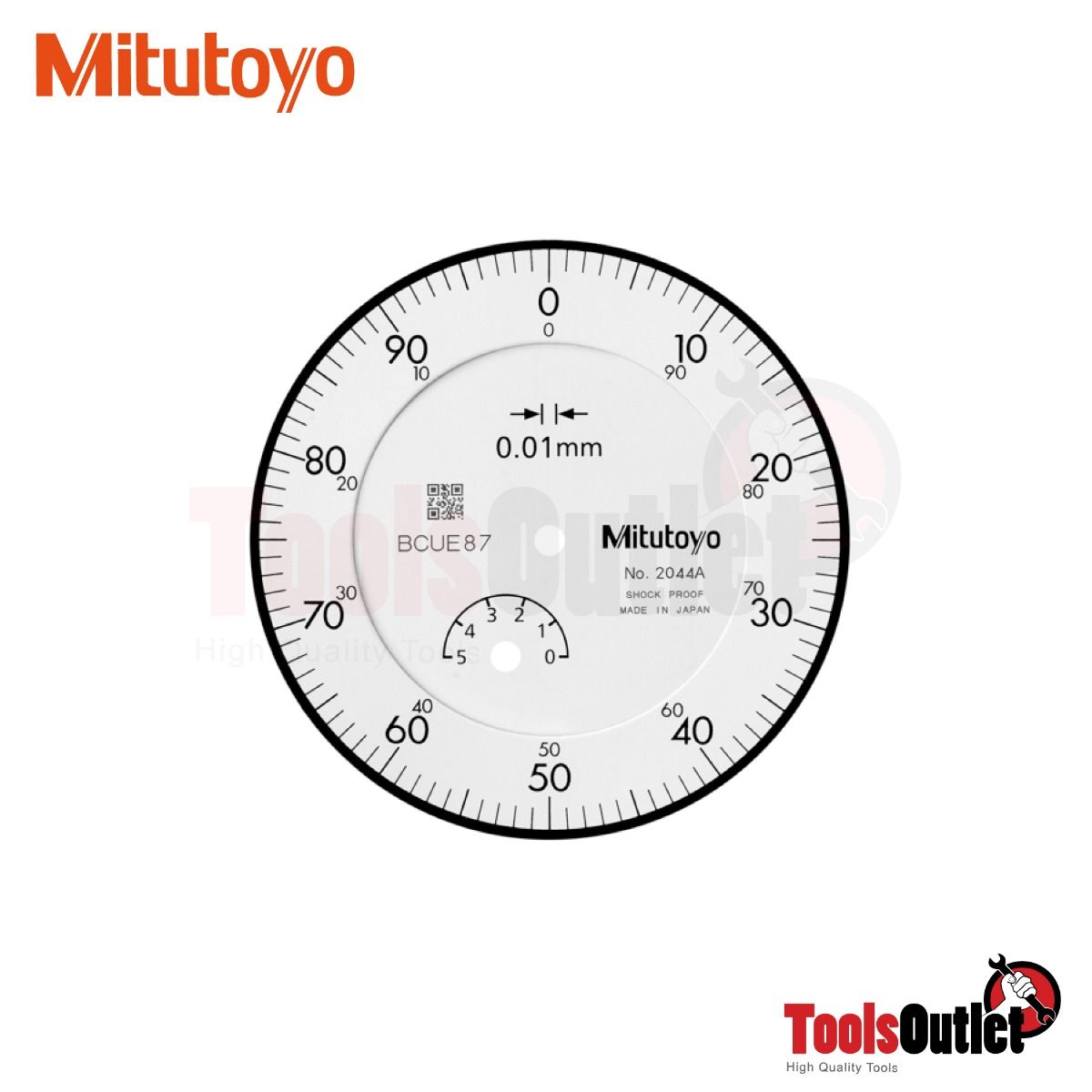

| Scale: |
0-100
|
| Measuring force: |
0.4-1.4
|
| MPE any 1/10 revolution: |
5 µm
|
| MPE any 1/2 revolution: |
9 µm
|
| MPE any 1 revolution: |
10 µm
|
| MPE measuring range: |
12 µm
|
| H MPE (Hysteresis): |
3 µm
|
| R MPE (Repeatability): |
3 µm
|
| Stem: |
8 mm
|
| Contact point: |
Carbide tipped, thread: M 2.5 x 0.45 mm
|
| Continuous dial: |
Yes
|
| fu: |
3 µm
|
| Mass: |
145 g
|
 |
A: 47.2 mm B: 65.2 mm C: 57 mm D: 18.1 mm E: 20 mm F: 16.9 mm G: 19.8 mm H: 52 mm I: 7.6 mm |
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
