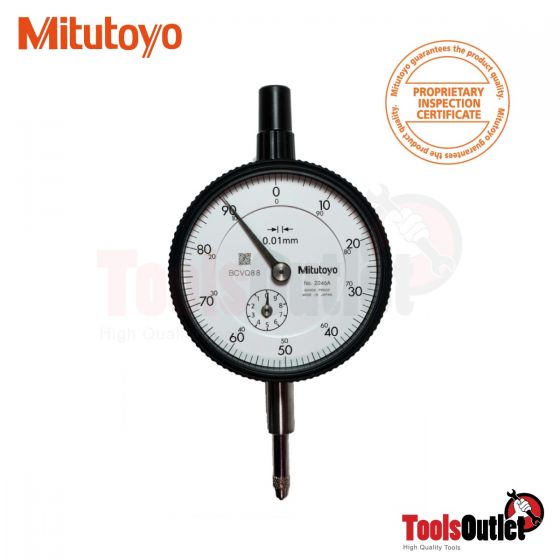

Dial Gauge ไดอัลเกจ Mitutoyo รุ่น 2046A-09 (0-10X0.01 มม.)
สินค้าหมด
รหัสสินค้า
1MIT-2046A-09
ราคาพิเศษ
฿1,598.58
ราคาปรกติ
฿2,283.69
Standard Type, 10 mm Range, 0.01 mm Graduation
This is a standard dial indicator. It offers you the following benefits:
- Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
- No through screw holes on the frame as well as the use of an O-ring prevents water or oil penetration.
|
ORDER NO.
|
2046A-09
|
| Digital/Analog: |
Analog
|
| Inch-Metric: |
Metric
|
| Range: |
10 mm
|
| Range per rev.: |
1 mm
|
| Graduation: |
0.01 mm
|
| Measuring force: |
0.4-1.4 N
|
| MPE any 1/10 revolution: |
5 µm
|
| MPE any 1/2 revolution: |
9 µm
|
| MPE any 1 revolution: |
10 µm
|
| MPE measuring range: |
15 µm
|
| H MPE (Hysteresis): |
3 µm
|
| R MPE (Repeatability): |
3 µm
|
| Stem: |
8 mm
|
| Contact point: |
Carbide tipped, thread: M 2.5 x 0.45 mm
|
| Delivered: |
With certificate of inspection
|
| Continuous dial: |
Yes
|
| Shockproof: |
Yes
|
| Mass: |
146 g
|
| fu: |
3 µm
|
| Functions: |
ISO type
|
 |
A: 47.2 mm |
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
