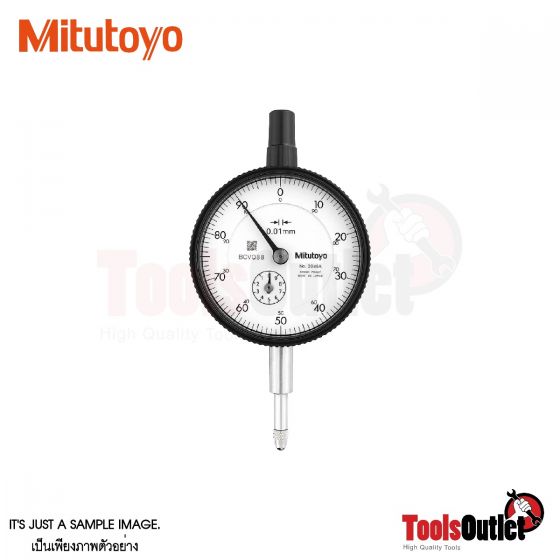

Dial Gauge ไดอัลเกจ Mitutoyo รุ่น 2046A
Standard Type, 10 mm Range, 0,01 mm Graduation
This is a standard, metric dial indicator. It offers you the following benefits:
- Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
- No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.
| ORDER NO. | 2046A |
|
Range:
|
10 mm
|
|
Range
per rev.: |
1 mm
|
|
Graduation:
|
0.01 mm
|
|
Scale:
|
0-100 (100-0)
|
|
MPE any 1/10
revolution: |
5 µm
|
|
MPE any 1/2
revolution: |
9 µm
|
|
MPE any 1
revolution: |
10 µm
|
|
MPE measuring range:
|
13 µm
|
|
H MPE (Hysteresis):
|
3 µm
|
|
R MPE (Repeatability):
|
3 µm
|
|
Measuring force:
|
0,4-1,4 N
|
|
Mass:
|
144 g
|
|
Continuous dial:
|
Yes
|
|
Digital/Analog:
|
Analog
|
|
Inch-Metric:
|
Metric
|
|
Type:
|
EN ISO Standard
|
|
Stem:
|
8 mm
|
|
Contact point:
|
Carbide tipped, thread: M 2.5 x 0.45 mm
|
|
Delivered:
|
with certificate of inspection
|
 |
A: 47.2 mm
B: 65.2 mm
C: 57 mm
D: 18.1 mm
E: 20 mm
F: 16.9 mm
G: 19.8 mm
I: 7.6 mm
|
