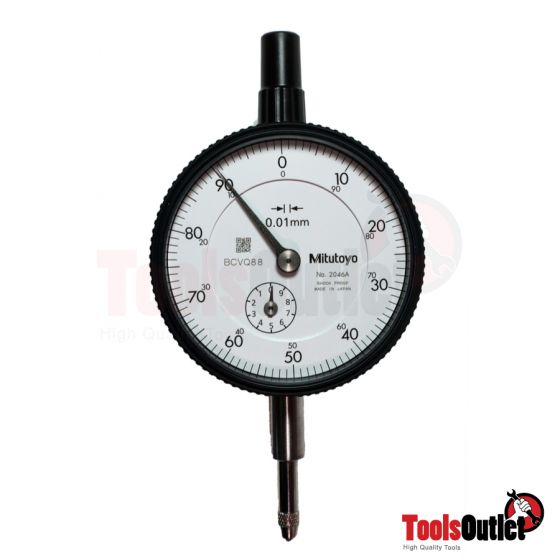

Dial Gauge ไดอัลเกจ (0.01X0-10มิล) Mitutoyo รุ่น 2046AB
Standard Type, 10 mm Range, 0,01 mm Graduation
This is a standard dial indicator. It offers you the following benefits:
- Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
- No through screw holes on the frame as well as the use of an O-ring prevents water or oil penetration.
| ORDER NO. | 2046AB |
| Digital/Analog: |
Analog
|
| Inch-Metric: |
Metric
|
| Range: |
10 mm
|
| Range per rev.: |
1 mm
|
| Graduation: |
0.01
|
| Scale: |
0-100 (100-0)
|
| MPE any 1/10 revolution: |
5
|
| MPE any 1/2 revolution: |
9
|
| MPE any 1 revolution: |
10
|
| MPE measuring range: |
13
|
| H MPE (Hysteresis): |
3
|
| R MPE (Repeatability): |
3
|
| Measuring force: |
0,4-1,4
|
| Stem: |
8 mm
|
| Contact point: |
Carbide tipped, thread: M 2.5 x 0.45 mm
|
| Delivered: |
with certificate of inspection
|
| Mass: |
135
|
| Continuous dial: |
Yes
|
| fu: |
3
|
| Functions: |
ISO type
|
 |
A:47.2 B:65.2 C:57 D:18.1 E:20 F:16.9 G:19.8 H:52 I:7.6 |
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
