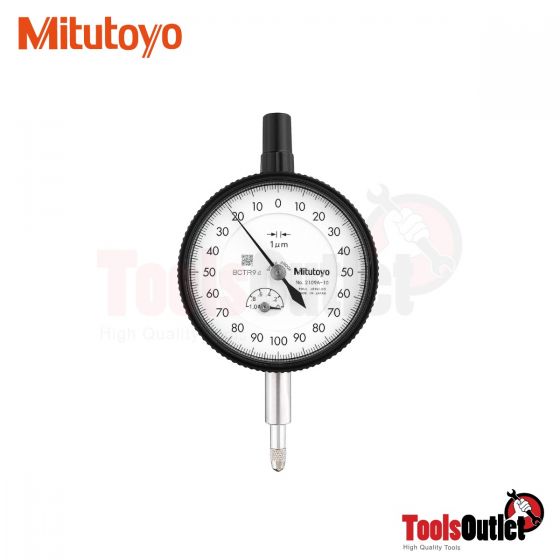

Dial Gauge ไดอัลเกจ Mitutoyo รุ่น 2109A-10
พร้อมส่ง
รหัสสินค้า
1MIT-2109A-10
ราคาพิเศษ
฿2,015.88
ราคาปรกติ
฿2,879.83
Standard Type, 1 mm Range, 0,001 mm Graduation
This is a standard, metric dial indicator. It offers you the following benefits:
- Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
- No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.
| ORDER NO. | 2109A-10 |
|
Range:
|
1 mm
|
|
Range
per rev.: |
0.2 mm
|
|
Graduation:
|
0.001 mm
|
|
Scale:
|
0-100-0
|
|
MPE any 1/10
revolution: |
2.5 µm
|
|
MPE any 1/2
revolution: |
4 µm
|
|
MPE any 1
revolution: |
4.5 µm
|
|
MPE measuring range:
|
5 µm
|
|
H MPE (Hysteresis):
|
2 µm
|
|
R MPE (Repeatability):
|
1 µm
|
|
Mass:
|
148 g
|
|
Balanced dial:
|
Yes
|
|
Shockproof:
|
Yes
|
|
Jeweled bearing:
|
Yes
|
|
Digital/Analog:
|
Analog
|
|
Inch-Metric:
|
Metric
|
|
Stem:
|
8 mm
|
|
Contact point:
|
Carbide tipped, thread: M 2.5 x 0.45 mm
|
|
Delivered:
|
with certificate of inspection, limit indicators
|
 |
A: 47.2 mm B: 60.5 mm C: 57 mm D: 18.1 mm E: 20 mm F: 16.9 mm G: 15.1 mm H: 52 mm I: 7.6 mm |
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
