Dial Gauge ไดอัลเกจฝาหลังเรียบ Mitutoyo รุ่น 2109AB-10 (0.001X0-1มิล)
พร้อมส่ง
รหัสสินค้า
1MIT-2109AB-10
ราคาพิเศษ
฿2,364.70
ราคาปรกติ
฿3,378.14
Standard Type, 1 mm Range, 0,001 mm Graduation
This is a standard dial indicator. It offers you the following benefits:
- Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
- No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.
| Digital/Analog: |
Analog
|
| Inch-Metric: |
Metric
|
| Functions: |
ISO type
|
| Range: |
1 mm
|
| Range per rev.: |
0.2 mm
|
| Dial reading: |
0-100-0
|
| Graduation: |
0.001 mm
|
| Graduation: |
0.001
|
| Measuring force: |
0,4-1,5
|
| MPE any 1/10 revolution: |
2.5 µm
|
| MPE any 1/2 revolution: |
4 µm
|
| MPE any 1 revolution: |
4.5 µm
|
| MPE measuring range: |
5 µm
|
| H MPE (Hysteresis): |
2 µm
|
| R MPE (Repeatability): |
1 µm
|
| Mass: |
139 g
|
| Stem: |
8 mm
|
| Contact point: |
Carbide tipped, thread: M 2.5 x 0.45 mm
|
| Balanced dial: |
Yes
|
| Shockproof: |
Yes
|
 |

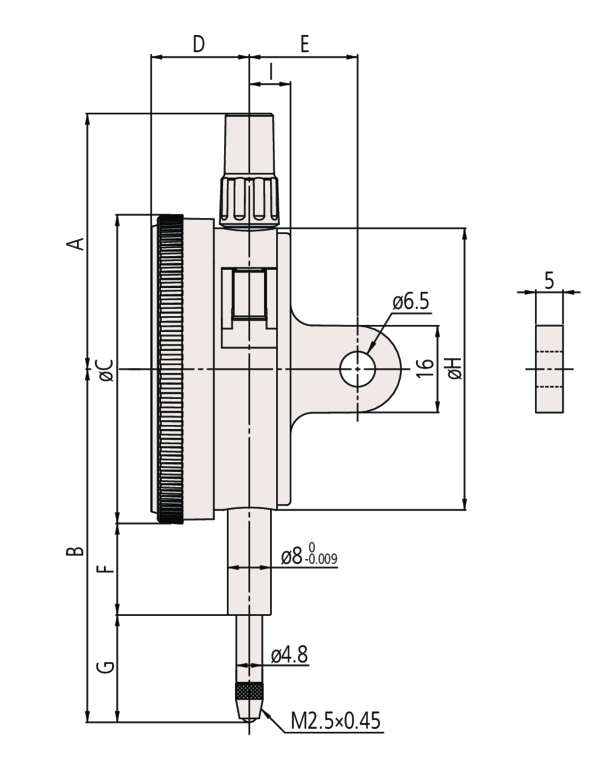

A: 47.2 mm |
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
