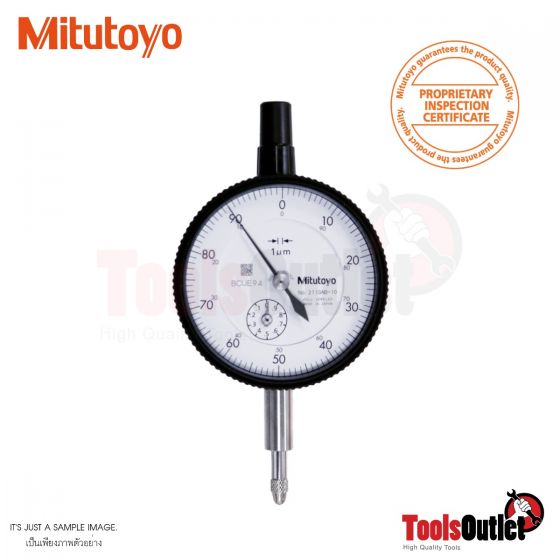

Dial Gauge ไดอัลเกจ Mitutoyo รุ่น 2110A-10 (0.001X0-1มิล)
สินค้าหมด
รหัสสินค้า
1MIT-2110A-10
ราคาพิเศษ
฿3,167.20
ราคาปรกติ
฿4,524.57
Standard Type, 1 mm Range, 0.001 mm Graduation
This is a standard dial indicator. It offers you the following benefits:
- Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
- No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.
| Order No | 2110A-10 |
| Digital/Analog: |
Analog
|
| Inch-Metric: |
Metric
|
| Range: |
1 mm
|
| Range per rev.: |
0.1 mm
|
| Graduation: |
0.001 mm
|
| Scale: |
0-100 (100-0)
|
| MPE any 1/10 revolution: |
2.5 µm
|
| MPE any 1/2 revolution: |
4 µm
|
| MPE any 1 revolution: |
4.5 µm
|
| MPE measuring range: |
5 µm
|
| H MPE (Hysteresis): |
2 µm
|
| R MPE (Repeatability): |
1 µm
|
| Measuring force: |
0.4-1.8 N
|
| Stem: |
8 mm
|
| Contact point: |
Carbide tipped, thread: M 2.5 x 0.45 mm
|
| Delivered: |
With certificate of inspection
|
| Mass: |
149 g
|
| Continuous dial: |
Yes
|
| Double scale spacing: |
Yes
|
| Shockproof: |
Yes
|
| fu: |
2 µm
|
| Functions: |
ISO type
|
 |
A : 47.2 |
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
