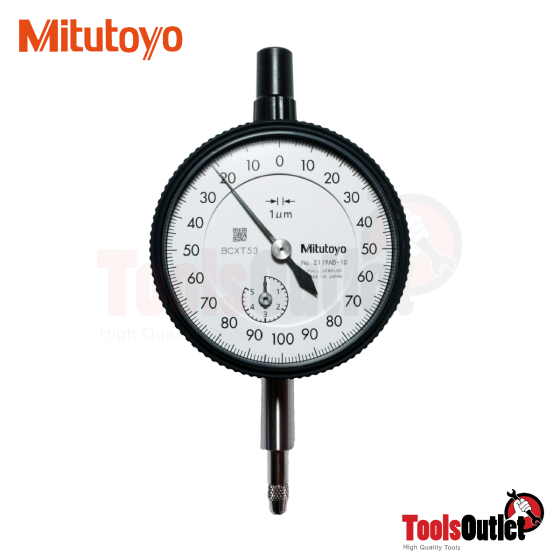

Dial Gauge ไดอัลเกจ Mitutoyo รุ่น 2119A-10 (0.001X0-5มิล)
สินค้าหมด
รหัสสินค้า
1MIT-2119A-10
ราคาพิเศษ
฿3,563.10
ราคาปรกติ
฿5,090.14
Standard Type, 2 and 5 mm Range, 0.001 / 0.005 mm Graduation
This is a standard dial indicator. It offers you the following benefits:
- Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
- No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.
| Digital/Analog: |
Analog
|
| Inch-Metric: |
Metric
|
| Functions: |
ISO type
|
| Delivered: |
With certificate of inspection
|
| Range: |
5 mm
|
| Range per rev.: |
0.2 mm
|
| Dial reading: |
0-100-0
|
| Graduation: |
0.001 mm
|
| Measuring force: |
0.4-1.5
|
| MPE any 1/10 revolution: |
4 µm
|
| MPE any 1/2 revolution: |
6 µm
|
| MPE any 1 revolution: |
6.5 µm
|
| MPE measuring range: |
10 µm
|
| H MPE (Hysteresis): |
2.5 µm
|
| R MPE (Repeatability): |
2 µm
|
| Mass: |
146 g
|
| Stem: |
8 mm
|
| Contact point: |
Carbide tipped, thread: M 2.5 x 0.45 mm
|
| Balanced dial: |
Yes
|
 |

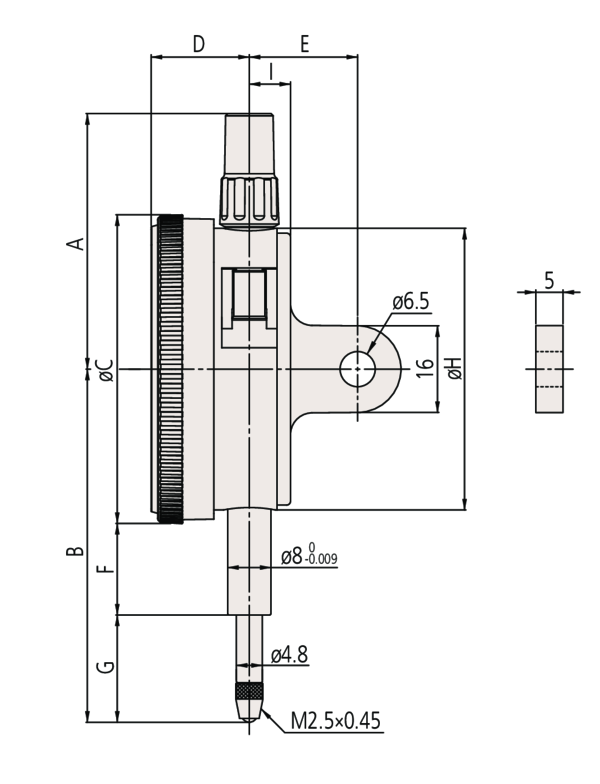

A : 47.2 mm B: 60.7 mm C: 57 mm D: 18.1 mm E: 20 mm F: 16.9 mm G: 15.3 mm H: 52 mm I: 7.6 mm |
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
