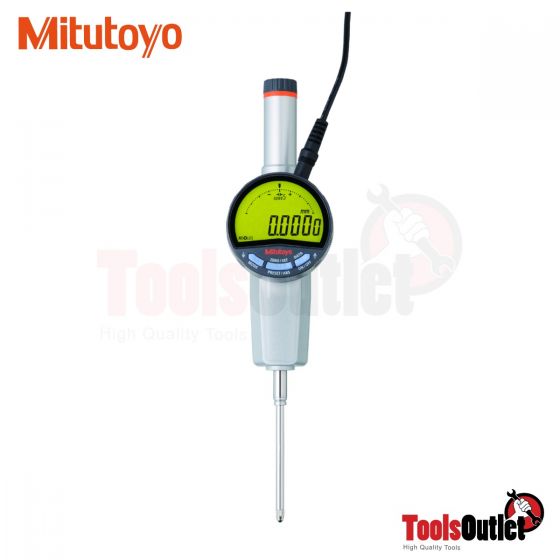

Dial Gauge ไดอัลเกจแบบดิจิตอล Mitutoyo รุ่น 543-853E (0.001X50มิล)
สินค้าหมด
รหัสสินค้า
1MIT-543-853E
ราคาพิเศษ
฿21,128.22
ราคาปรกติ
฿30,183.17
This is a superior multifunction indicator.
The ABSOLUTE Digimatic Indicator ID-F offers you the following benefits:
- Bidirectional Digimatic S1 interface
- Red/Green LCD backlight provides you with visual GO/±NG tolerance judgement
- Analogue bar-graph display
- MAX/MIN/RANGE (runout value) function with a frequency of 500scan/s
- External power supply via AC-Adapter
- High accuracy and 0.5 µm digital step
|
ORDER NO.
|
543-853E |
| Digital/Analog: |
Digital
|
| Inch-Metric: |
Metric
|
| Range: |
50.8 mm
|
| Digital step: |
0.0005 mm/0.001 mm/0.01mm
|
| Max. Permissible Error E MPE (Total Range): |
0.004 mm
|
| H MPE (Hysteresis): |
0.002 mm
|
| R MPE (Repeatability): |
0.002 mm
|
| Protection: |
IP30
|
| Type: |
EN ISO Standard
|
| Scale: |
Electrostatic capacitance type absolute linear encoder
|
| Display: |
LCD with red/green backlight, character height 11 mm
|
| Max. response speed: |
Unlimited
|
| Measurement frequency (MAX/MIN/RANGE): |
500 times/s
|
| Alarm: |
Setting errors, sensor error, display overflow a.s.o.
|
| Stem Ø: |
8 mm
|
| Contact point: |
Carbide ball, thread: M2.5x0.45
|
| Power supply: |
AC adapter 5,9V, 2A
|
| Delivered: |
Including spindle lifting handle, AC-adapter, certificate of inspection
|
| DATA/HOLD: |
Yes
|
| PRESET: |
Yes
|
| Digimatic data output: |
Yes
|
| Digimatic S1 Bidirectional interface: |
Yes
|
| ON/OFF: |
Yes
|
| Analog bar resolution switchable: |
Yes
|
| Function lock: |
Yes
|
| GO/±NG judgement: |
Yes
|
| MAX/MIN/RANGE: |
Yes
|
| ABS / INC (INC ZERO): |
Yes
|
| Analog bar resolution selection: |
yes
|
| Auto Power OFF setting: |
Yes
|
| Selectable resolution: |
Yes
|
| Calculation function (with formula): |
Yes
|
| Customizing keys: |
Yes
|
| Counting direction switchable: |
Yes
|
| Inch/Metric switchable: |
No
|
| Calibration warning function: |
Yes
|
| Digital step switchable: |
Yes
|
| Mass: |
330 g
|
| Plunger Direction: |
Up to the horizontal direction
|
 |
