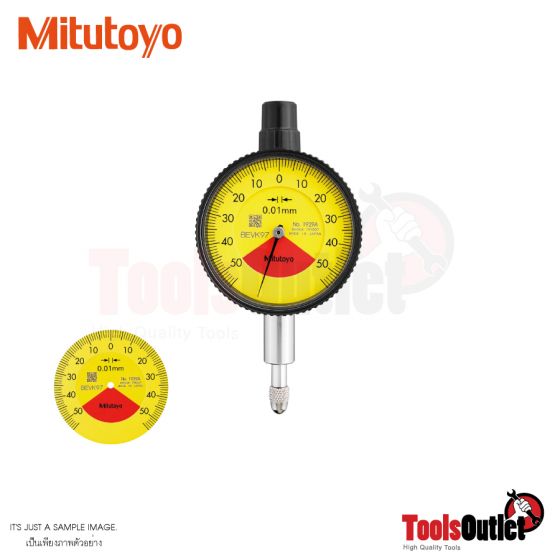

Dial Indicator ไดอัลเกจ Mitutoyo รุ่น 1929A (0.01X0-1มิล)
This is a compact, metric dial indicator. It offers you the following benefits:
- It is ideal for use in applications where space is limited.
- It eliminates the possibility of reading errors due to miscounting multiple revolutions.
| ORDER NO. | 1929A |
|
Range:
|
1 mm
(plunger stroke: 3,5mm) |
|
Range
per rev.: |
1.4 mm
|
|
Graduation:
|
0.01 mm
|
|
Scale:
|
50-0-50
|
|
MPE any 1/10
revolution: |
5 µm
|
|
MPE measuring range:
|
9 µm
|
|
H MPE (Hysteresis):
|
3 µm
|
|
R MPE (Repeatability):
|
3 µm
|
|
Measuring force:
|
0,4-1,4 N
|
|
Mass:
|
90 g
|
|
Balanced dial:
|
Yes
|
|
One revolution:
|
Yes
|
|
Shockproof:
|
Yes
|
|
Digital/Analog:
|
Analog
|
|
Inch-Metric:
|
Metric
|
|
Type:
|
EN ISO Standard
|
|
Stem:
|
8 mm
|
|
Contact point:
|
Carbide tipped, thread: M 2.5 x 0.45 mm
|
|
Delivered:
|
with certificate of inspection
|
 |
A: 32.5 mm B: 47.5 mm C: 40 mm D: 15 mm E: 20 mm F: 13.8 mm G: 13.7 mm I: 606 mm |
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
