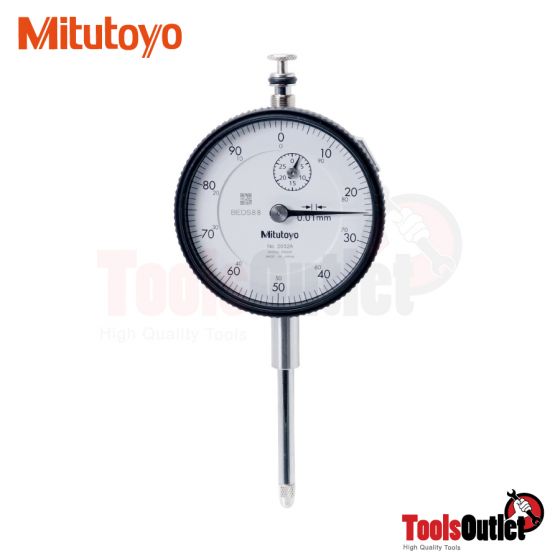

Dial Indicator ไดอัลเกจ Mitutoyo รุ่น 2052AB (0-30X0.01 มม.)
This is a standard, metric dial indicator. It offers you the following benefits:
- Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
- No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.
| ORDER NO. | 2052AB |
|
Range:
|
30 mm
|
|
Range
per rev.: |
1 mm
|
|
Graduation:
|
0.01 mm
|
|
Scale:
|
0-100 (100-0)
|
|
MPE any 1/10
revolution: |
7 µm
|
|
MPE any 1/2
revolution: |
11 µm |
|
MPE any 1
revolution: |
12 µm
|
|
MPE measuring range:
|
25 µm
|
|
H MPE (Hysteresis):
|
5 µm
|
|
R MPE (Repeatability):
|
3 µm
|
|
Measuring force:
|
0,4-2,5 N
|
|
Mass:
|
143 g
|
|
Continuous dial:
|
Yes
|
|
Cushioned end point:
|
Yes
|
|
Digital/Analog:
|
Analog
|
|
Inch-Metric:
|
Metric
|
|
Type:
|
EN ISO Standard
|
|
Stem:
|
8 mm
|
|
Contact point:
|
Carbide tipped, thread: M 2.5 x 0.45 mm
|
|
Delivered:
|
with certificate of inspection
|
 |
A:38.8 mm
B:88.7 mm
C:57 mm
D:18.1 mm
E:20 mm
F:16.9 mm
G:43.3 mm
I:7.6 mm
|
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
