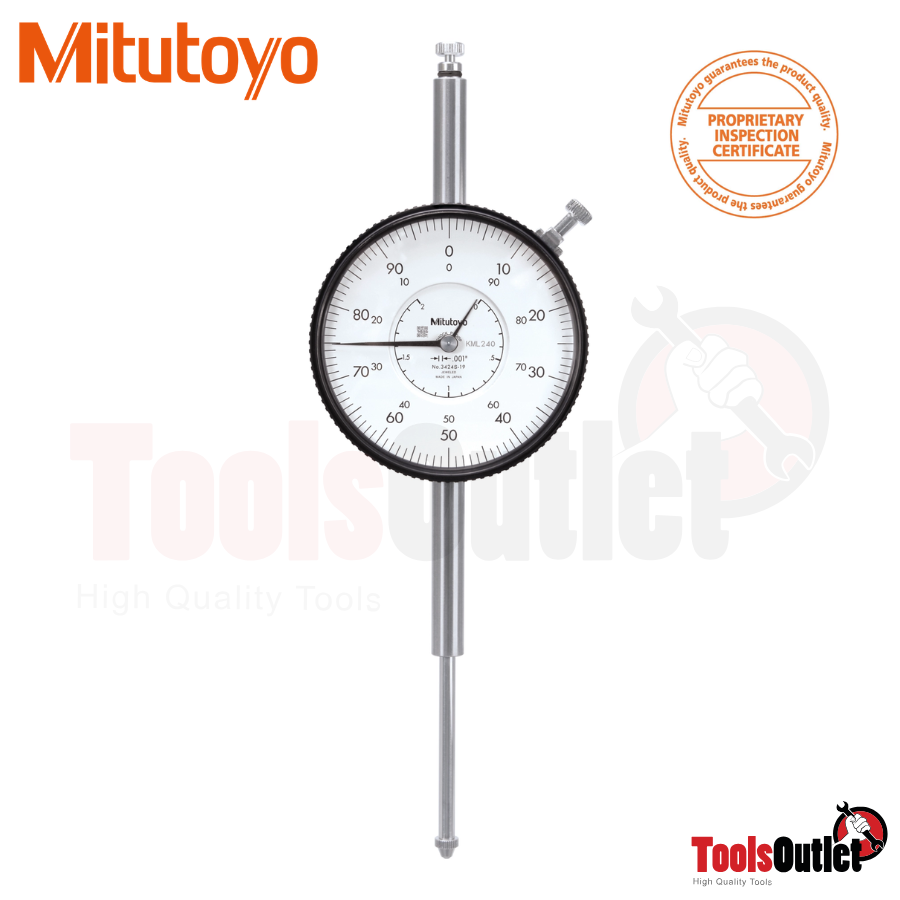

Dial Indicators ไดอัลเกจ Mitutoyo รุ่น 3424A-19
สินค้าหมด
รหัสสินค้า
1MIT-3424A-19
ราคาพิเศษ
฿4,825.70
ราคาปรกติ
฿6,893.86
This is a standard, inch dial indicator. It offers you the following benefits:
- Large-diameter dial face ø = 78 mm for easy reading
- Supplied with limit markers and a bezel clamp as standard
- 0.001" / 0.0001" graduation
| Digital/Analog: |
Analog
|
| Inch-Metric: |
Inch
|
| Range: |
2 "
|
| Range per rev.: |
0.1"
|
| Dial reading: |
±0-100
|
| Graduation: |
0.001"
|
| H MPE (Hysteresis): |
0.00033"
|
| R MPE (Repeatability): |
±0.0002"
|
| MPE first one revolution: |
±0.001"
|
| MPE first 2 1/2 revolutions: |
±0.001"
|
| MPE > 2 1/2-10 revolutions: |
±0.002"
|
| MPE > 10-20 revolutions: |
±0.003"
|
| Type: |
ANSI/AGD Standard
|
| Measuring force: |
0.4-3 N
|
| Stem: |
9.52 mm / 0.375"
|
| Contact point: |
Carbide tipped, thread: 4-48UNF
|
| Continuous dial: |
Yes
|
| Coaxial revolution counter: |
Yes
|
| Shockproof: |
Yes
|
| Mass: |
321 g
|
| Delivered: |
With certificate of inspection, bezel clamp
|
 |

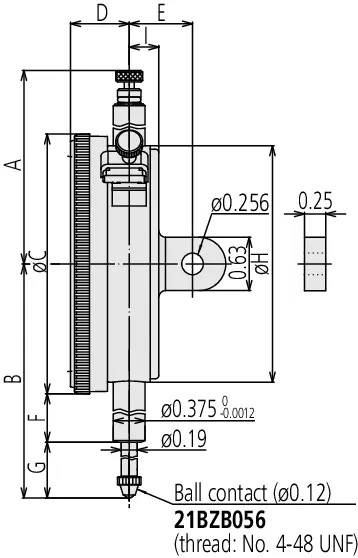

A: 3.31 " B: 5.88 " C: 3.07 " D: 0.7 " E: 3/4 " F: 1.99 " G: 2.35 " H: 2.8 " I: 0.35 " |
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
