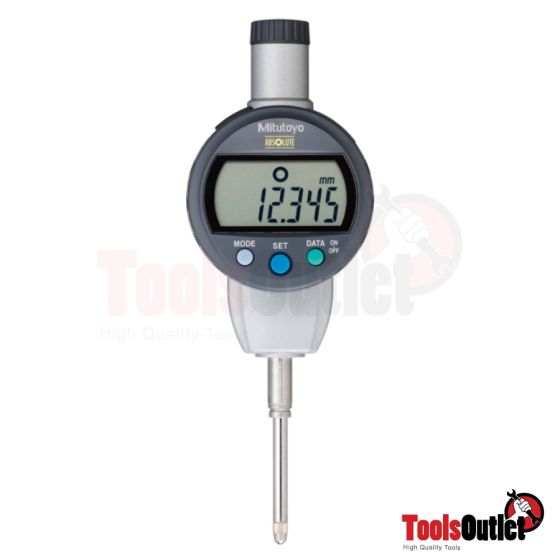

Digital Indicator ไดอัลเกจแบบดิจิตอลรุ่น Mitutoyo รุ่น 543-470B
- The ABSOLUTE Digimatic Indicator ID-C offers you the following benefits: The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
- GO/±NG judgement is performed by setting the upper and lower tolerances.
- You can make simple calculations by a user-definable factor using the formula Ax (‚x‘ is spindle displacement).
- Large character height of 11mm provides good readability.
- Display 330° rotatable.
- A function lock protects the display against unauthorised use.
|
ORDER NO. |
543-470B |
|
Range: |
25.4 mm |
|
Digital step: |
0,001 mm |
|
Max. permissible error of indication: |
0,003 mm |
|
Hysteresis: |
0,002 mm |
|
Repeatability: |
0,002 mm |
|
Mass: |
190 g |
|
Scale: |
Capacitance type, ABSOLUTE linear encoder |
|
Max. response speed: |
Unlimited |
|
Stem Ø: |
8 mm |
|
Contact point: |
Carbide ball, thread M 2.5 x 0.45 mm |
|
Alarm: |
Low voltage, counting value composition error, overflow error, tolerance limit setting error |
|
Power supply: |
1 battery SR-44 |
|
Battery life: |
approx. 7000h |
|
Display: |
LCD character height 11 mm Rotatable 330° |
|
ZERO/ABS: |
Yes |
|
GO/±NG judgement: |
Yes |
|
Digimatic data output: |
Yes |
|
ON/OFF: |
Yes |
|
Lock function: |
Yes |
|
Selectable resolution: |
Yes |
|
PRESET: |
Yes |
|
Calculation function: |
Yes |
|
Counting direction switchable: |
Yes |
|
Selectable resolution (0,001 mm type): |
Yes |
|
Digital/Analog: |
Digital |
|
Inch-Metric: |
Metric |
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
