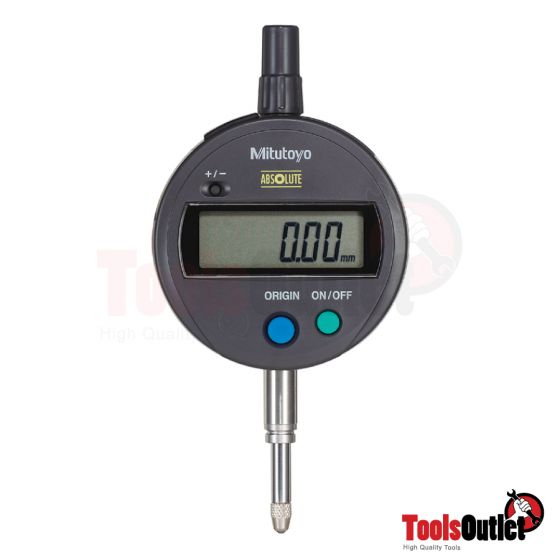

Digital Indicator ไดอัลเกจแบบดิจิตอลรุ่น Mitutoyo รุ่น 543-781

สินค้าหมด
รหัสสินค้า
1MIT-543-781
ราคาพิเศษ ฿3,213.00 ราคาปรกติ ฿4,590.00

This is a standard model of indicator that is reliable and easy to use.
The ABSOLUTE Digimatic Indicator ID-S offers you the following
benefits:

  • The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
  • You can access all functions by using the large, user-friendly buttons on the front of the indicator.
  • Large character height of 9 mm provides good readability.
  • Exceptional battery life.

ORDER NO.

543-781

Range:

12.7 mm

Digital step:

0,01 mm

Max. permissible error of indication:

0,02 mm / 100mm

Hysteresis:

0,02 mm / 100mm

Repeatability:

0,01 mm

Mass:

150 g

Scale:

Capacitance type, ABSOLUTE linear encoder

Max. response speed:

Unlimited

Stem Ø:

8 mm

Contact point:

Carbide ball, thread

M 2.5 x 0.45 mm

Alarm:

Low voltage, counting value composition error, overflow error, tolerance limit setting error

Power supply:

1 battery SR-44

Battery life:

approx. 18000 hours (0.001 mm type),
approx. 20000 hours (0.01 mm type)

Display:

LCD character height 11 mm Rotatable 330°

Inch-Metric:

Metric

ORIGIN (ABS-Zero):

Yes

Digimatic data output:

Yes

Counting direction switchable:

Yes

ON/OFF:

Yes
