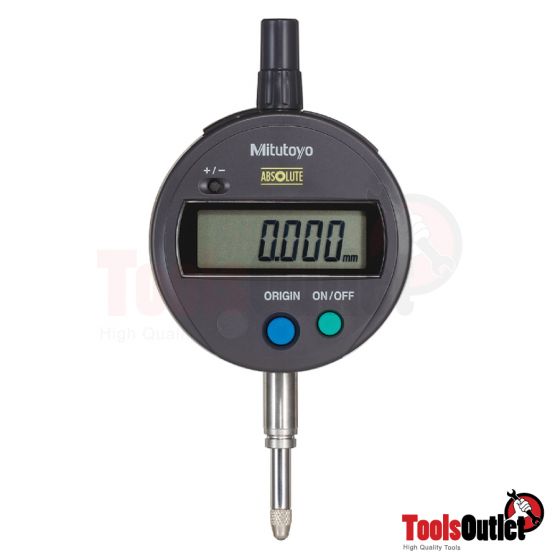

Digital Indicator ไดอัลเกจแบบดิจิตอลรุ่น Mitutoyo รุ่น 543-790B
สินค้าหมด
รหัสสินค้า
1MIT-543-790B
ราคาพิเศษ
฿7,190.40
ราคาปรกติ
฿10,272.00
This is a standard model of indicator that is reliable and easy to use.
The ABSOLUTE Digimatic Indicator ID-S offers you the following
benefits:
- - The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
- - You can access all functions by using the large, user-friendly
buttons on the front of the indicator. - - Large character height of 9 mm provides good readability.
- - Exceptional battery life.
|
ORDER NO.
|
543-790B
|
|
Range:
|
12,7 mm
|
|
Digital step:
|
0,001 mm
|
|
Range:
|
12,7 mm mm
|
|
Data output:
|
Yes
|
|
Max. Permissible Error (Total Range):
|
0,003 mm
|
|
Hysteresis:
|
0,002 mm
|
|
H MPE (Hysteresis):
|
0,002 mm
|
|
Mass:
|
140 g
|
|
Repeatability:
|
0,002 mm
|
|
Mass lug/plain:
|
140/150 g
|
|
Measuring force:
|
≤ 1,5 N
|
|
Scale:
|
Capacitance type, ABSOLUTE linear encoder
|
|
Max. response speed:
|
Unlimited
|
|
Stem Ø:
|
9,52 mm
|
|
Contact point:
|
Carbide ball, thread M 2.5 x 0.45 mm
|
|
Alarm:
|
Low voltage, counting value composition error
|
|
Power supply:
|
1 battery SR-44
|
|
Battery life:
|
approx. 18000 hours (0.001 mm type),
approx. 20000 hours (0.01 mm type) |
|
Protection:
|
IP42
|
|
Display:
|
LCD, character height 9 mm
|
|
Max. response speed:
|
Unlimited
|
|
Delivered:
|
Including 1 battery
|
|
Low voltage alarm:
|
Yes
|
|
Counting direction switchable:
|
Yes
|
|
ORIGIN (ABS-Zero):
|
Yes
|
|
Digimatic data output:
|
Yes
|
|
ON/OFF:
|
Yes
|
|
Digital/Analog:
|
Digital
|
|
Inch-Metric:
|
Metric
|
|
Type:
|
EN ISO Standard
|
ไม่ระบุ
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
