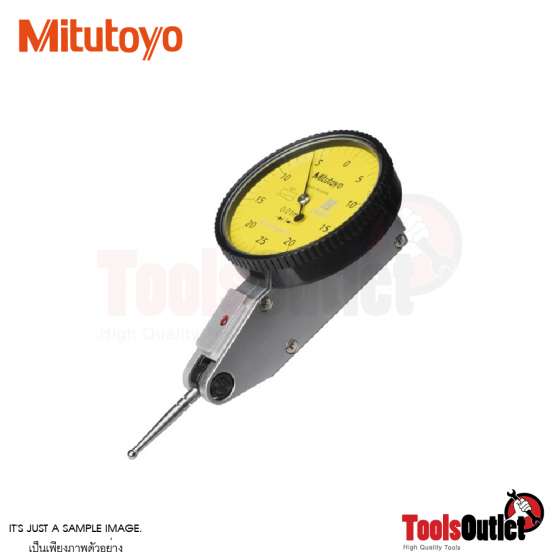

Dial Test Indicator ไดอัลเทสอินดิเคเตอร์ Mitutoyo รุ่น 513-424-10E (0.01X0.5มิล)
สินค้าหมด
รหัสสินค้า
1MIT-513-424-10E
ราคาพิเศษ
฿2,439.60
ราคาปรกติ
฿3,485.14
A Mitutoyo versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a basic set of mounting accessories.
| Code No (Basic set) | 513-424-10E |
| Graduation (mm) | 0.01 |
| Range (mm) | 0.5 |
| Dial reading | 0-25-0 |
| Maximum permissible error (MPE)* (μm) - Measuring range - One rev - 10 scale divisions - Hysteresis - Repeatability |
6 - 5 4 3 |
| Mass (g) | 45 |
| Measuring force (N) | 0.3 or less |
 |
L: 22.2 mm L2: 18.7 mm L3: 26.8 mm |
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
