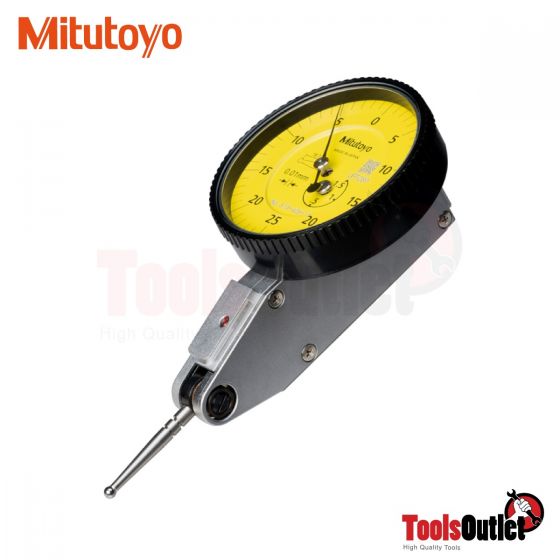

Dial Test Indicator ไดอัลเทสอินดิเคเตอร์ Mitutoyo รุ่น 513-426-10E (0.01X0-1.5มิล)
พร้อมส่ง
รหัสสินค้า
1MIT-513-426-10E
ราคาพิเศษ
฿3,199.30
ราคาปรกติ
฿4,570.43
A versatile long stylus, anti-magnetic type Mitutoyo lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a basic set of mounting accessories.
| Digital/Analog: |
Analog
|
| Inch-Metric: |
Metric
|
| Functions: |
Basic set
|
| Type: |
Basic set
|
| Range: |
1.5 mm
|
| Graduation: |
0.01 mm
|
| Graduation: |
0.01
|
| Scale: |
0-25-0
|
| MPE any 10 scale divisions: |
5 µm
|
| MPE any 1 revolution: |
10 µm
|
| MPE measuring range: |
16 µm
|
| H MPE (Hysteresis): |
4 µm
|
| R MPE (Repeatability): |
3 µm
|
| Carbide stylus tip ø2 mm No.: |
137557
|
| Mass: |
45 g
|
| Contact point: |
Thread M 1.7 x 0.35
|

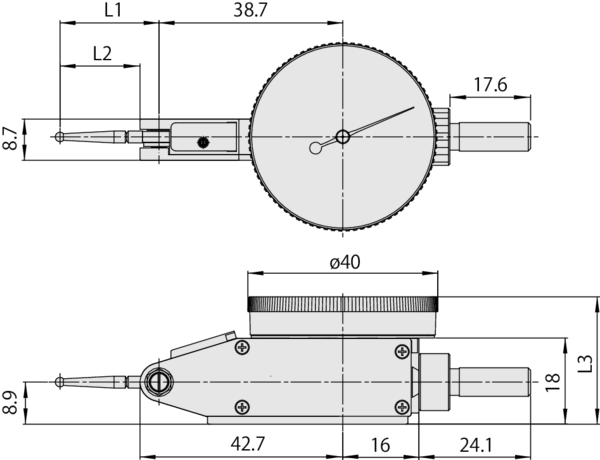

| D Ø: |
40 mm
|
 |
L1 : 22.2 mm L2 : 18,7 mm |
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
