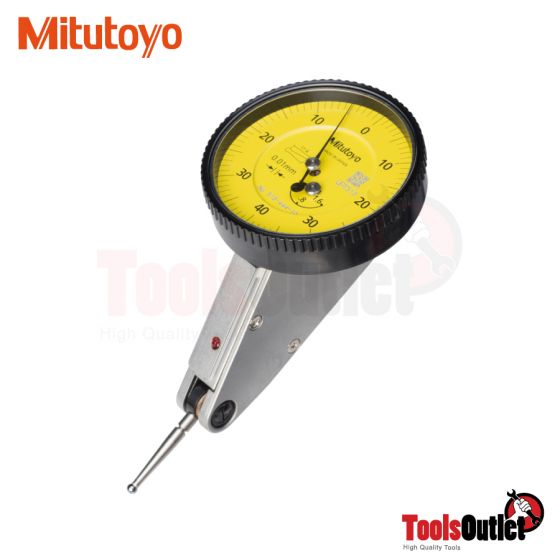

Dial Test Indicator ไดอัลเทสอินดิเคเตอร์ Mitutoyo รุ่น 513-444-10T
สินค้าหมด
รหัสสินค้า
1MIT-513-444-10T
ราคาพิเศษ
฿4,733.68
ราคาปรกติ
฿6,762.40
This is a Dial Test Indicator (Lever Type) which offers you the following benefits:
- Drastically enhanced durability, sensitivity and visibility.
- Glare-free flat crystal face allows easy reading of graduations.
- O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
- The stylus length is on the dial face to reorder a replacement
- Multi-layer coatings on the crystal.
| ORDER NO. | 513-444-10T |
|
Graduation:
|
0.01 mm
|
|
Scale:
|
0-40-0
|
|
MPE any 10 scale divisions:
|
5 µm
|
|
MPE any 1/2
revolution: |
8 µm
|
|
MPE any 1
revolution: |
10 µm
|
|
MPE measuring range:
|
16 µm
|
|
H MPE (Hysteresis):
|
4 µm
|
|
R MPE (Repeatability):
|
3 µm
|
|
Carbide stylus tip ø2 mm No.:
|
103006
|
|
Measuring force:
|
0,01-0,3 N
|
|
Mass:
|
48 g
|
|
D Ø:
|
40 mm
|
|
L1
[mm]: |
20,9
|
|
L2
[mm]: |
17,4
|
|
Contact point:
|
Thread M 1.7 x 0.35
|
|
Digital/Analog:
|
Analog
|
|
Inch-Metric:
|
Metric
|
|
Range:
|
1,6
|
|
Type:
|
Full set
|
|
Delivered:
|
In a box with stem ø8/4 mm, stylus ø1/2/3 mm, swivel clamp and holding bar
|
|
Coaxial revolution counter:
|
Yes
|
|
Functions:
|
Full set
|
ไม่ระบุ
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
