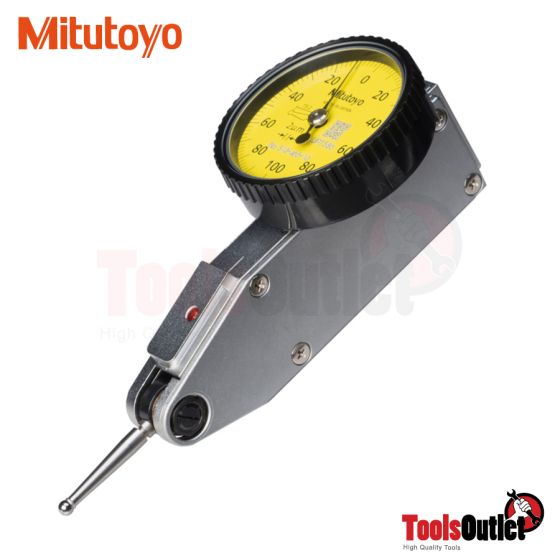

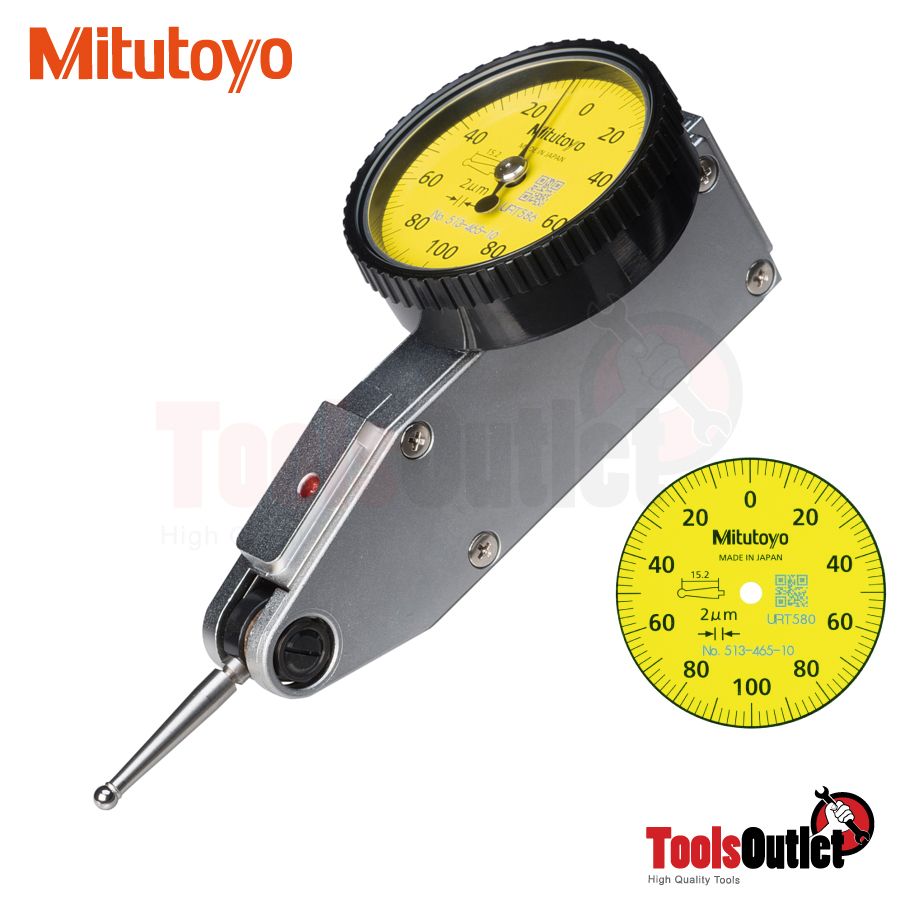

Dial Test Indicator ไดอัลเทสอินดิเคเตอร์ Mitutoyo รุ่น 513-465-10E

สินค้าหมด
รหัสสินค้า
1MIT-513-465-10E
ราคาพิเศษ ฿3,765.33 ราคาปรกติ ฿5,379.04
This is a Dial Test Indicator (Lever Type) which offers you the following benefits: Drastically enhanced durability, sensitivity and visibility. Glare-free flat crystal face allows easy reading of graduations. O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face. The stylus length is on the dial face to reorder a replacement Multi-layer coatings on the crystal.

Dial Test Indicator ไดอัลเทสอินดิเคเตอร์ Mitutoyo รุ่น 513-465-10E (0.002X0.2มิล)

ORDER NO. 513-404-10E
Graduation:
0.002 mm
Scale:
0-100-0
MPE any 10 scale divisions:
2 µm
MPE any 1/2
revolution:
3 µm
MPE measuring range:
3 µm
H MPE (Hysteresis):
2 µm
R MPE (Repeatability):
1 µm
Carbide stylus tip ø2 mm No.:
103011
Measuring force:
0,01 - 0,3 N
Mass:
41 g
Digital/Analog:
Analog
Inch-Metric:
Metric
Range:
0,2
Type:
Basic set
Contact point:
Thread M 1.7 x 0.35
Delivered:

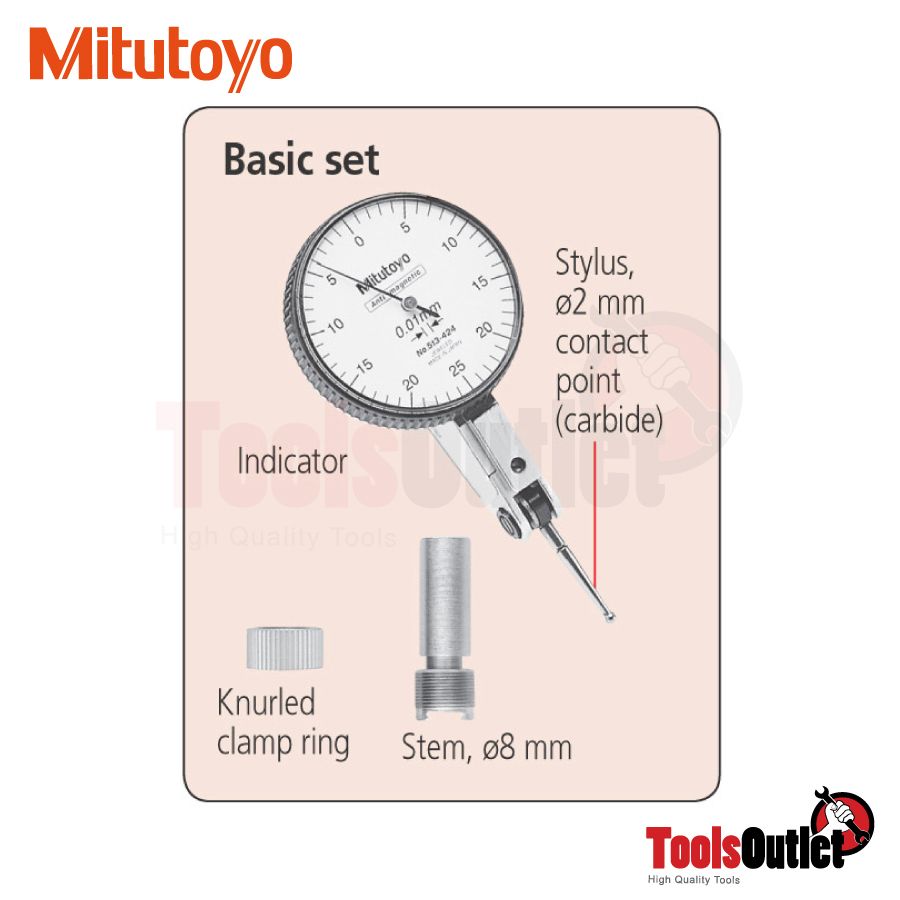

In a box with stem ø8 mm, stylus ø2 mm
Functions:
Basic set
ไม่ระบุ
ข้อมูลเพิ่มเติม
ยี่ห้อ เครื่องมือวัด Mitutoyo
BRANDS MITUTOYO
