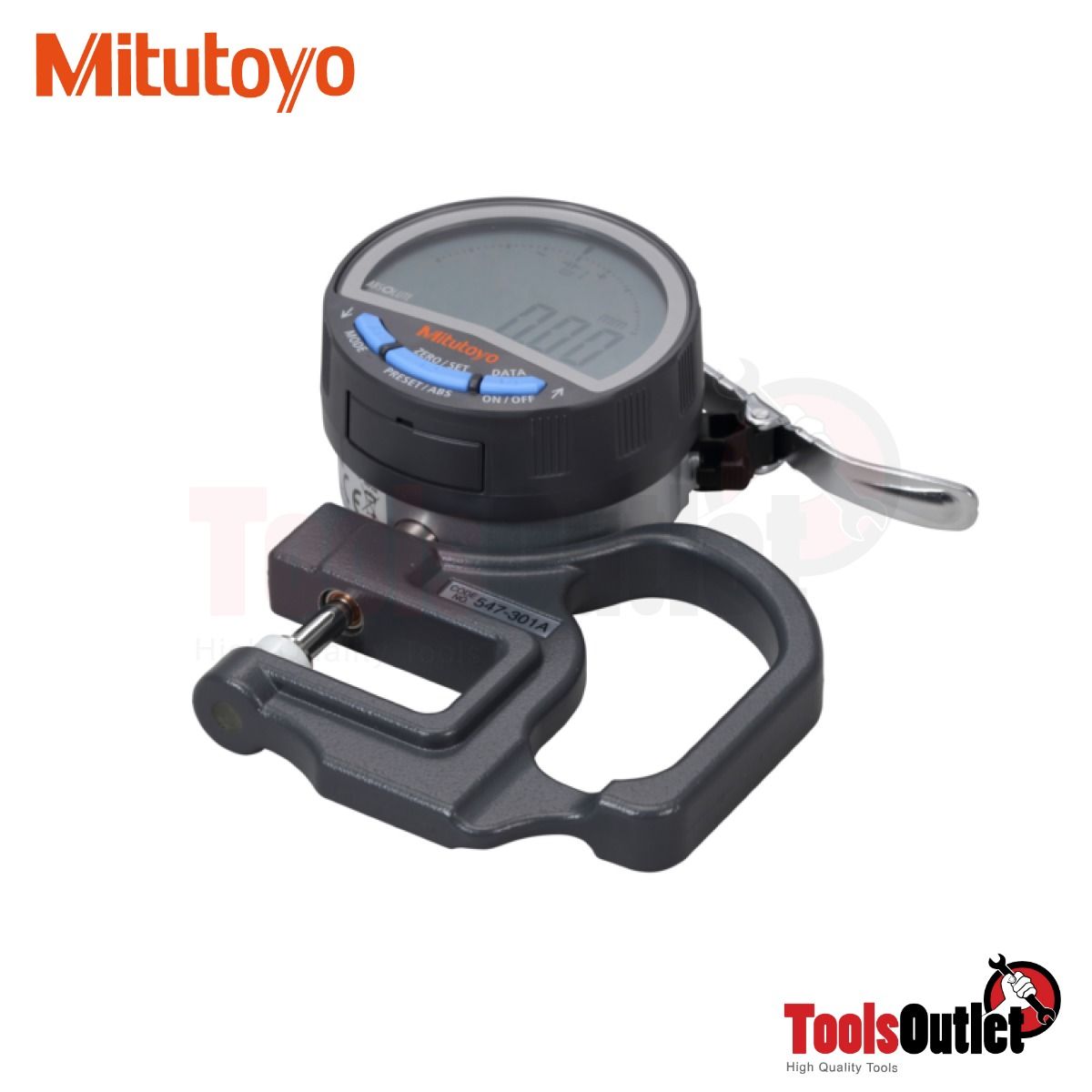

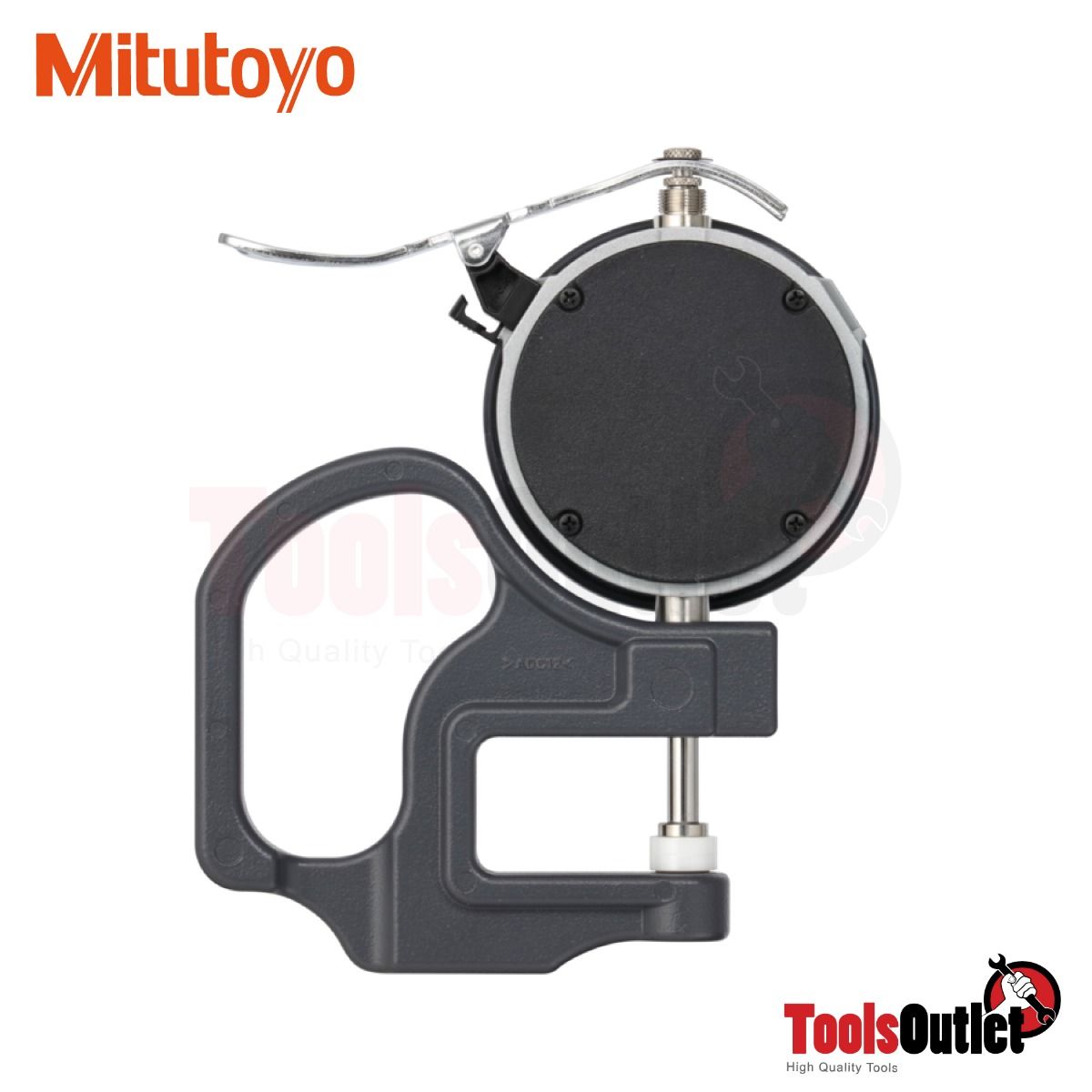

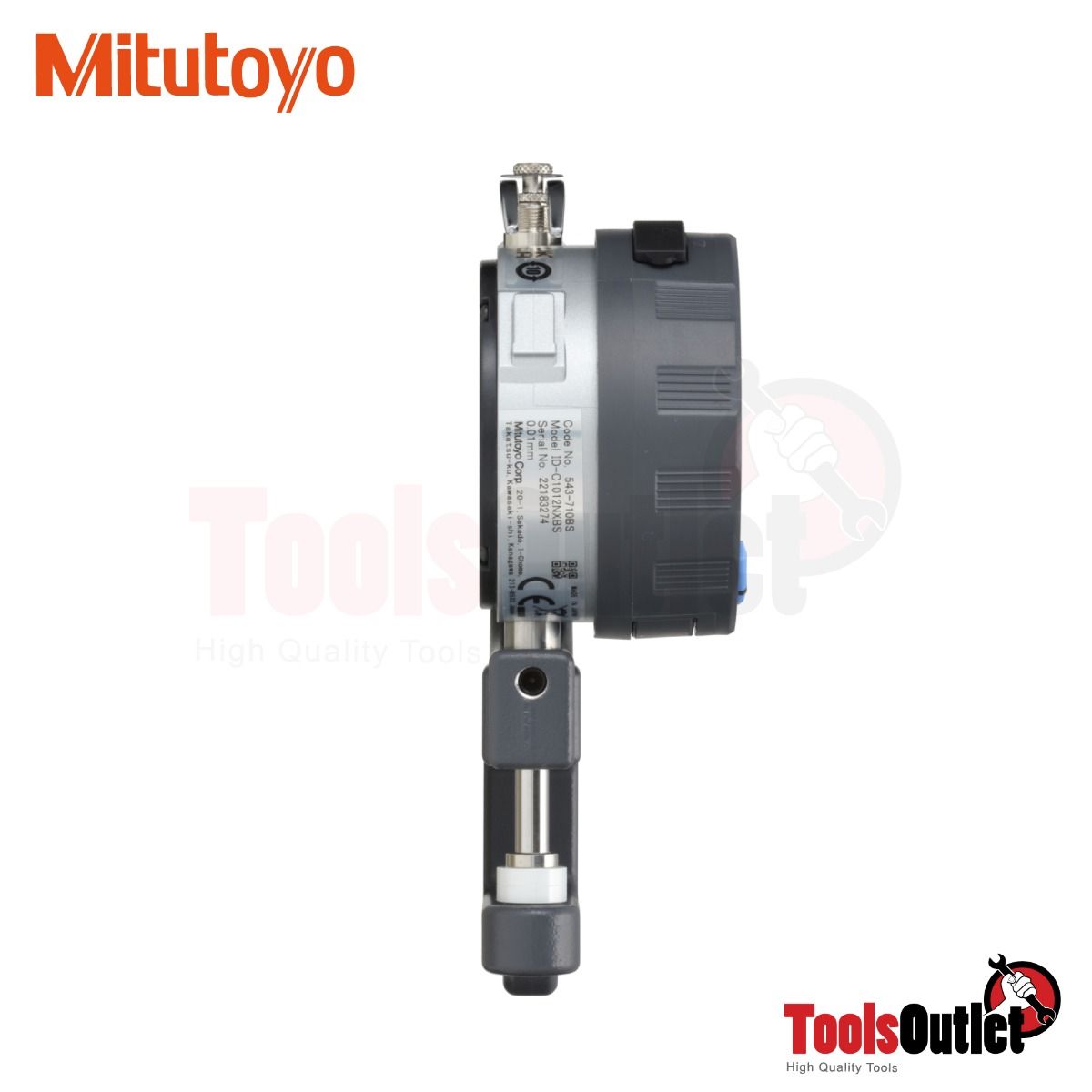

Dial Thickness Gauges เกจวัดหนาบางดิจิตอล Mitutoyo รุ่น 547-301A (0.01X0-10มิล)
สินค้าหมด
รหัสสินค้า
1MIT-547-301A
ราคาพิเศษ
฿10,471.02
ราคาปรกติ
฿14,958.60
This ABSOLUTE Digimatic Thickness Gauge enables you to measure film, paper, etc., with flat contact points.
| Digital/Analog: |
Digital
|
| Inch-Metric: |
Metric
|
| Functions: |
543-710BS
|
| Range: |
0 - 10 mm
|
| Digital step: |
0.01 mm
|
| Accuracy: |
±20 µm
|
| R MPE (Repeatability): |
0.0005"/0.01 mm
|
| Measuring force: |
≤ 1.5 N
|
| Protection: |
IP42
|
| Parallelism: |
0.01 mm
|
| Indicator No.: |
543-710BS
|
| Max. measuring depth: |
30 mm
|
| Scale: |
Electrostatic capacitance type absolute linear encoder
|
| Display: |
LCD, character height 11 mm
|
| Alarm: |
Low voltage, setting errors, sensor error, display overflow a.s.o.
|
| Power supply: |
1 battery CR2032 (3V)
|
| Battery life: |
Continuous use: approx. 2700h
|
| DATA/HOLD: |
Yes
|
| PRESET: |
Yes
|
| Digimatic data output: |
Yes
|
| ON/OFF: |
Yes
|
| Function lock: |
Yes
|
| GO/±NG judgement: |
Yes
|
| ABS / INC (INC ZERO): |
Yes
|
| Calculation function (with formula): |
Yes
|
| Counting direction switchable: |
Yes
|
| Digimatic S1 Bidirectional interface: |
Yes
|
| Analog bar resolution selection: |
Yes
|
| Auto Power OFF setting: |
Yes
|
| Analog bar resolution switchable: |
Yes
|
| Customizing keys: |
Yes
|
| Inch/Metric switchable: |
Yes
|
| Calibration warning function: |
Yes
|
| Digital step switchable: |
No
|
| Type: |
Ceramic disc contact points
|
 |
 |
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
