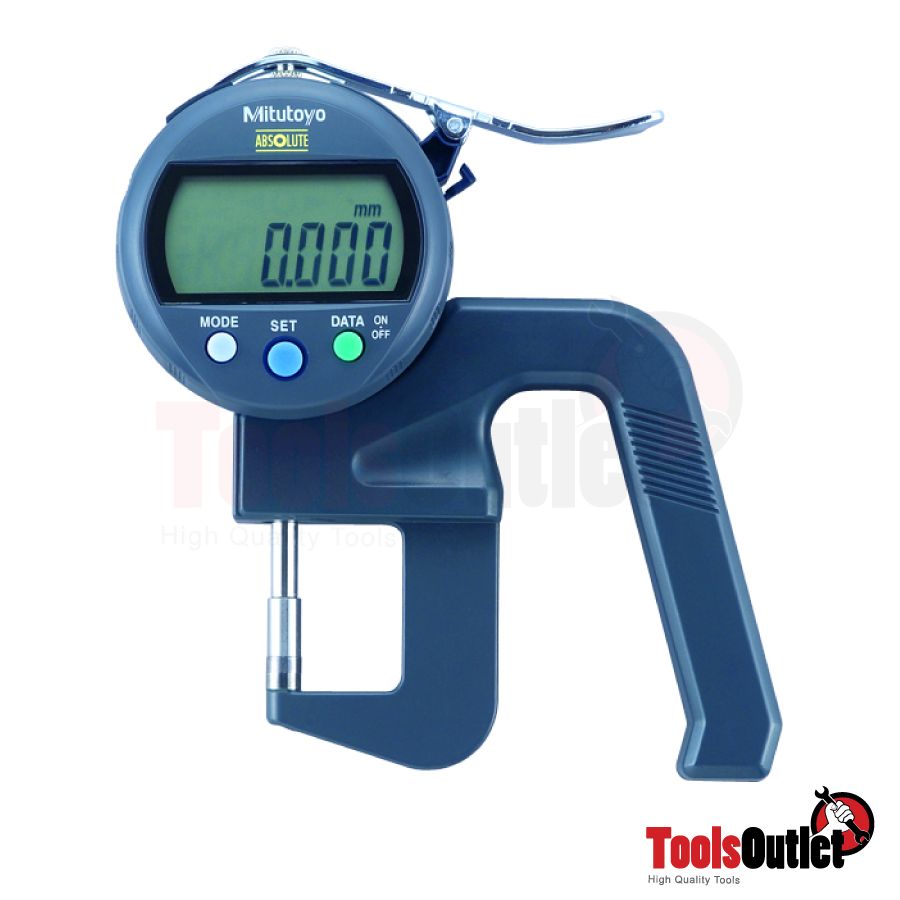

Digital Thickness Gauge เกจวัดหนาบางดิจิตอลรุ่น Mitutoyo รุ่น 547-401
สินค้าหมด
รหัสสินค้า
1MIT-547-401
ราคาพิเศษ
฿15,692.62
ราคาปรกติ
฿22,418.03
This ABSOLUTE Digimatic Thickness Gauge with 1 µm digital step enables you to measure film, paper, etc., with flat contact points.
|
Max. measuring depth:
|
21 mm
|
|
Type:
|
Carbide-tipped contact points
|
|
Inch-Metric:
|
Metric
|
|
Range:
|
0 - 12 mm
|
|
Digital step:
|
0,01 mm/0,001 mm
|
|
Mass:
|
290 g
|
|
Data output:
|
Yes
|
|
Measuring force:
|
≤ 3,5 N
|
|
Scale:
|
Capacitance type ABSOLUTE linear encoder
|
|
Parallelism:
|
3 µm
|
|
Max. response speed:
|
Unlimited
|
|
Contact point:
|
Thread M 2.5 x 0.45 mm
|
|
Alarm:
|
Low voltage, counting value composition error, overflow error, tolerance limit setting error (ID-C only)
|
|
Power supply:
|
1 battery SR-44
|
|
Battery life:
|
approx. 7000 hours
|
|
Accuracy:
|
±3 µm
(excluding quantizing error) |
|
PRESET:
|
Yes
|
|
Counting direction switchable:
|
Yes
|
|
ZERO/ABS:
|
Yes
|
|
GO/±NG judgement:
|
Yes
|
|
Digimatic data output:
|
Yes
|
|
ON/OFF:
|
Yes
|
|
DATA (output with cable) / HOLD (display value):
|
Yes
|
|
Lock function:
|
Yes
|
|
Calculation function (with formula):
|
Yes
|
ไม่ระบุ
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
