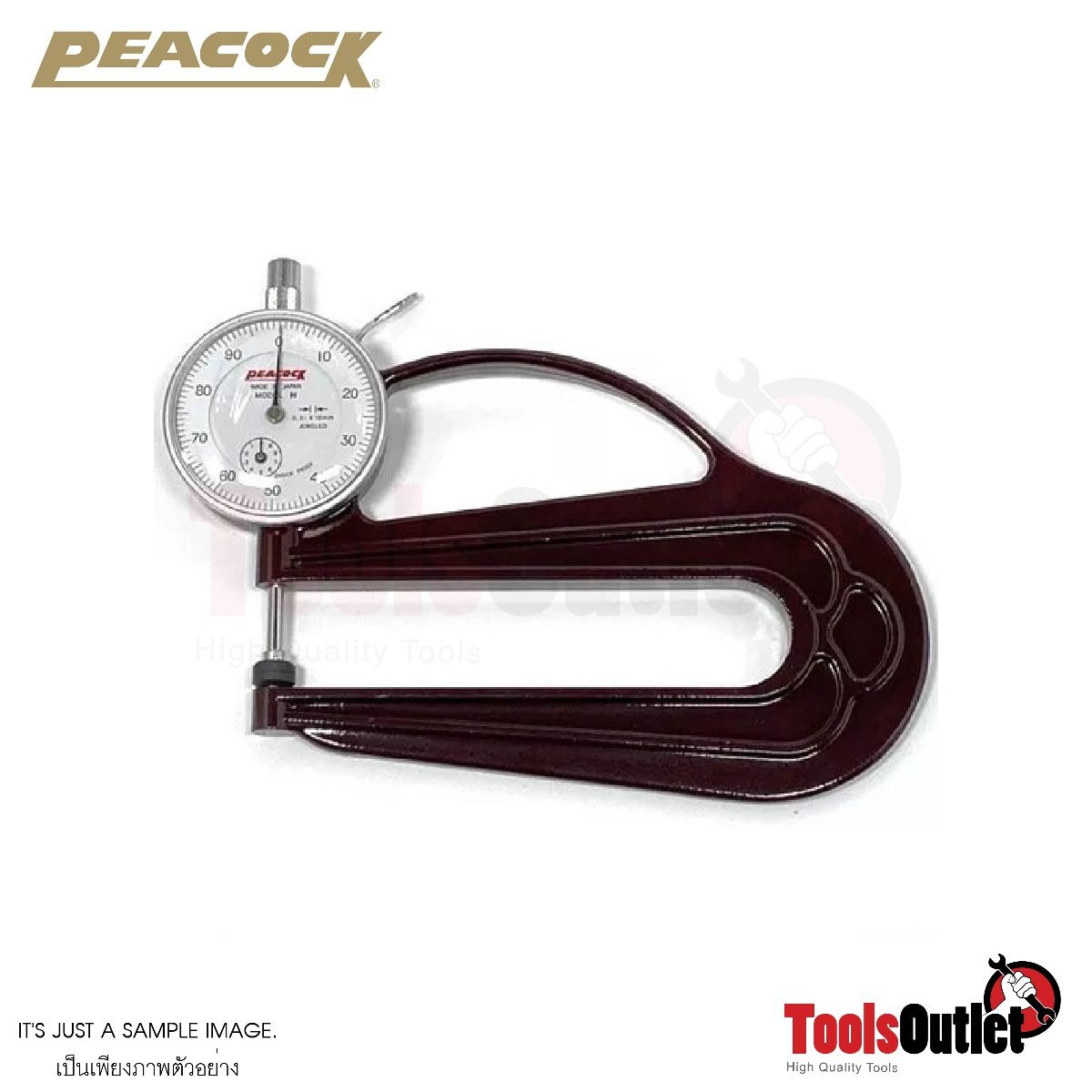

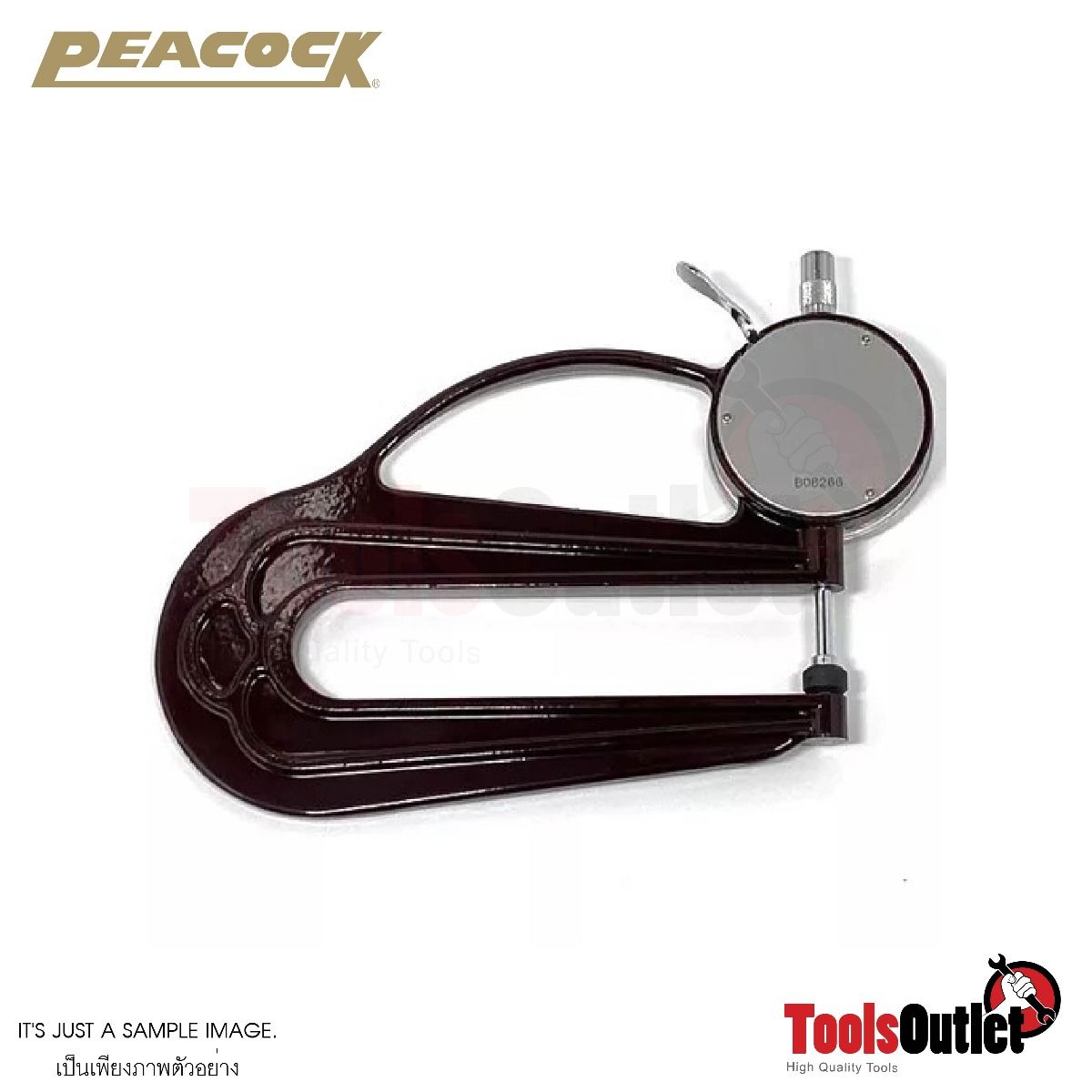

Dial Thickness Gauges ไดอัลวัดความหนา PEACOCK รุ่น H
Dial Thickness Gauges ไดอัลวัดความหนา PEACOCK รุ่น H ขนาด 0.01X0-10 มิล
These thickness gauges are especially handy for measuring thickness of small parts, metal, rubber, vinyl, paper, foil and other sheet material.
- The objects to be measured is clamped by simple lever operation. The measured values are read directly on the dial gauge.
- Since the anvil and the contact point are adjusted for parallelism, accurate measured values are obtained.
| Model | H |
| Graduation | 0.01mm |
| Range | 0 - 10mm |
- Ø10mm flat contact point and anvil (ceramic)
| Specifications | |||||||
| Model | Graduation (mm) |
Range (mm) |
Throat depth (mm) |
Accuracy (µm) |
Contact Point | Measuring force less than (N) |
|
| Dia (mm) | Parallelism (µm) | ||||||
| H | 0.01 | 0 - 10 | 120 | ±20 | 10 | 5 | 1.8 |
