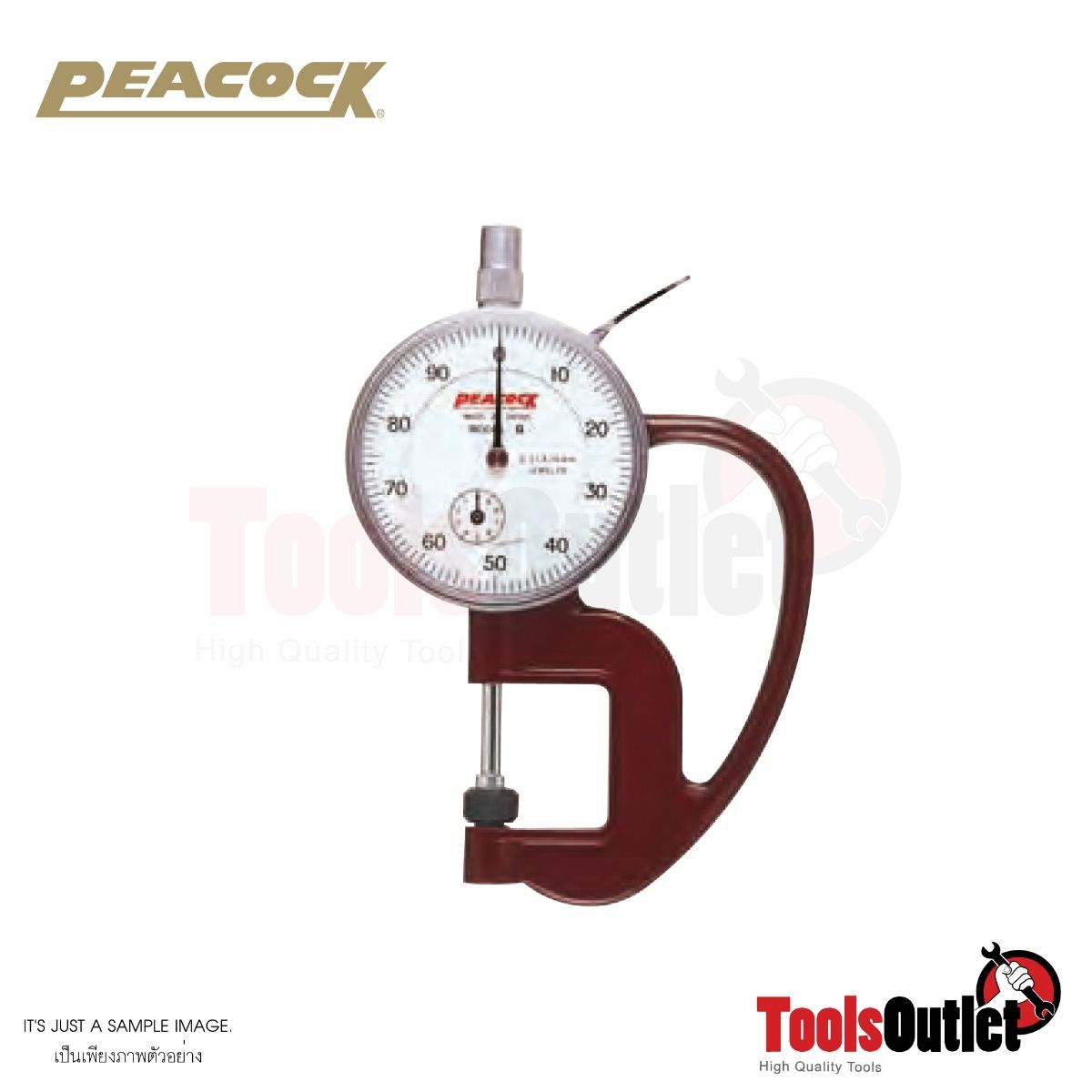

Dial Thickness Gauges ไดอัลวัดความหนา PEACOCK รุ่น G
These thickness gauges are especially handy for measuring thickness of small
parts, metal, rubber, vinyl, paper, foil and other sheet material
- The objects to be measured is clamped by simple lever operation.
The measured values are read directly on the dial gauge. - Since the anvil and the contact point are adjusted for parallelism, accurate measured values
are obtained.
| Model | G |
| Graduation (mm) | 0.01 |
| Range (mm) | 0～10 |
| Throat depth (mm) | 20 |
| Accuracy (μm) | ±20 |
| Contact Point Dia (mm) | 10 |
| Contact Point Parallelism (μm) | 5 |
| Measuring force less than(N) | 1.8 |
