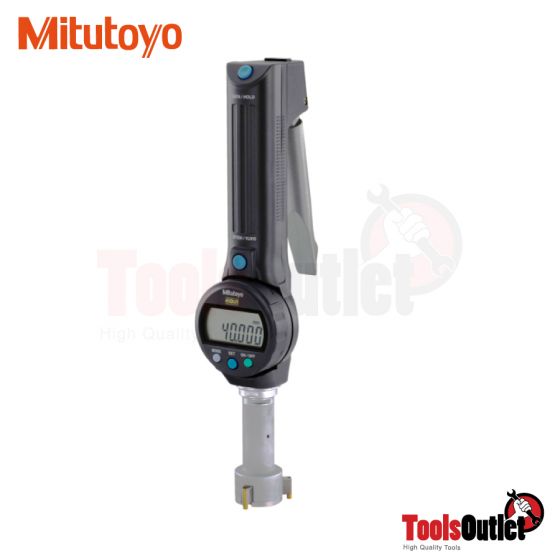

Digital Borematic บอร์เกจ Mitutoyo รุ่น 568-368 (0.001X30-40มิล)
สินค้าหมด
รหัสสินค้า
1MIT-568-368
ราคาพิเศษ
฿32,939.95
ราคาปรกติ
฿47,057.07
This is a individual unit Three-Point Digimatic Snap Open Bore Gauge.
It offers you the following benefits:
- It enables you to take measurements easily and quickly.
- Titanium-coated measuring pins gives you excellent durability and impact resistance.
- 330° rotatable display unit also gives you easy reading at any
angle. - GO/NG tolerance judgement function.
| ORDER NO. | 568-368 |
|
Range:
|
30 - 40 mm
|
|
Maximum Permissible Error J MPE:
|
±6 µm
|
|
Digital step:
|
0,001 mm
|
|
Mass:
|
565 g
|
|
Power supply:
|
1 battery SR-44
|
|
Measuring face:
|
Titanium coated hardened steel
taper: tungsten carbide |
|
Measuring method:
|
3-point
|
|
Battery life:
|
Approx. 5000 hours
|
|
Delivered:
|
Including box, key, 1 battery, certificate of inspection
|
|
Display:
|
LCD, character height: 11 mm
|
|
ON/OFF:
|
Yes
|
|
ZERO/ABS:
|
Yes
|
|
Function lock:
|
Yes
|
|
DATA (output with cable) / HOLD (display value):
|
Yes
|
|
2 x PRESET:
|
Yes
|
|
Data output:
|
Yes
|
|
GO/±NG judgement:
|
Yes
|
|
Digital/Analog:
|
Digital
|
|
Inch-Metric:
|
Metric
|
 |

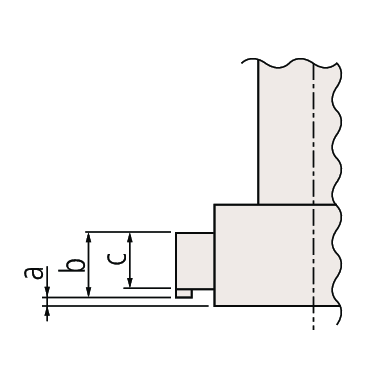

a:0.3 mm
b:13 mm
c:10 mm

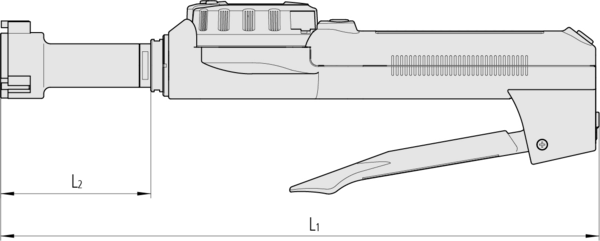

L1:269 mm
L2:67 mm
|
 |
a:0.3 mm
b:13 mm
c:10 mm
L1:269 mm
L2:67 mm
|
ไม่ระบุ
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
