Digital Force Gauge เกจวัดแรงดึง-ดันดิจิตอล IMADA รุ่น DSV-20N
สินค้าหมด
รหัสสินค้า
IMA-DSV-20N
ราคาพิเศษ
฿22,384.40
ราคาปรกติ
฿31,977.71
- Sounds alarms when you tilt it to right,left or up,down from the preset positiont to ensure high repeatable testing
- Great portability with long battery life (lasts 30 hours continuously at max), and various charging methods (charges from a PC or a mobile battery)
- Easy data management using supplied software Force Logger via USB connection to PC
- Allows high efficient testing with continuous peak mode
- Internal memory function (1000 points) to recall previous data
| Model | DSV-20N |
| Accuracy | ±0.2％F.S.(full scale)±1digit |
| Unit | N(mN, kN), kgf(gf), lbf (*1) |
| Display | 4-digit LCD |
| Sampling rate | Max. 1000 data/sec |
| Battery | Approx.30 hours（when back light is off） Approx.14 hours (when back light is on)（need 4.5 hours for full charge） |
| Overload | Approx.200%F.S. |
| Power | Nickel-Metal Hydride battery (NiMH battery) , USB charge(PC, mobile battery, AC adapter) |
| Operating environment | Temperature：0 - 40°C, Humidity：20 -80%RH |
| Functions |
Peak hold(Tensile or compression)/Comparator(OK Judgement)/Sensitivity(3 steps)/ |
|
Tilt-sensing alarm / Continuity peak mode(*2) / Internal memory (1000 point) |
|
| Output | USB/RS232C |
| Overload alarm | Alarm to notify “near-overload state”: Approx. 90%F.S. (Alarm sound) Alarm to notify “overloaded state” : Approx.110％F.S.（Alarm sound／Indication blinking） |
| Weight | Aprrox.460g (*3) |
| Dimensions | Refer to Dimensions on page 5 |

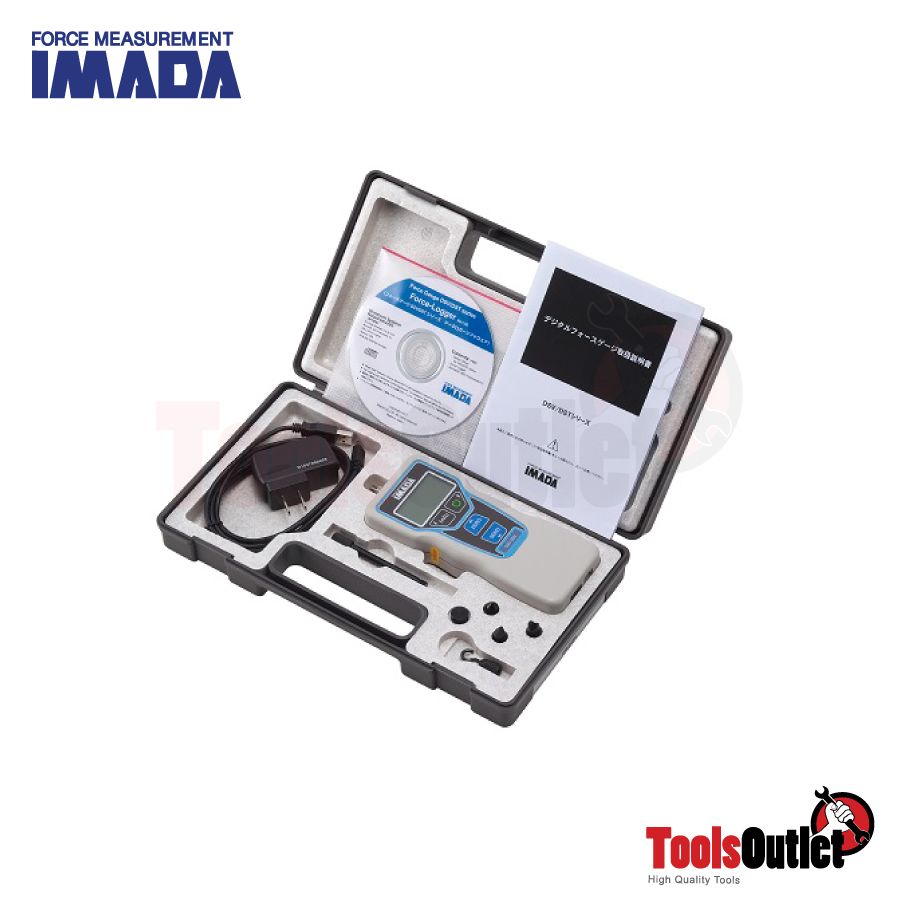

| Accessories | CD driver (including data logging software) / USB cable/AC adaptor / Attachments (The types of attachments vary by models) / Carrying case / Instruction manual/Inspection certificate |
ไม่ระบุ
| ยี่ห้อ อุปกรณ์สำหรับงานแลป | IMADA |
|---|---|
| BRANDS | IMADA |
