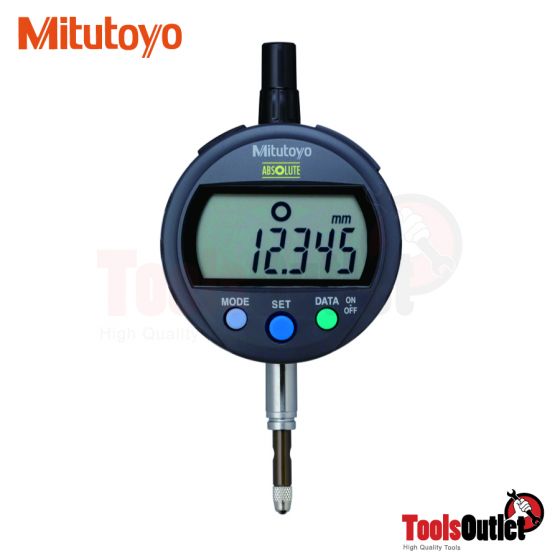

Digital Indicator ไดอัลเกจดิจิตอล Mitutoyo รุ่น 543-394
สินค้าหมด
รหัสสินค้า
1MIT-543-394
ราคาพิเศษ
฿10,293.40
ราคาปรกติ
฿14,704.86
This is a multifunction indicator that is reliable and easy to use.
The ABSOLUTE Digimatic Indicator ID-C offers you the following benefits:
- The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
- GO/±NG judgement is performed by setting the upper and lower tolerances.
- You can make simple calculations by a user-definable factor using the formula Ax (‚x‘ is spindle displacement).
- Large character height of 11mm provides good readability.
- Display 330° rotatable.
- A function lock protects the display against unauthorised use.
| ORDER NO. | 543-394 |
|
Range:
|
12.7 mm
|
|
Digital step:
|
0,001 mm
|
|
Max. Permissible Error E MPE:
|
0,003 mm
|
|
H MPE (Hysteresis):
|
0,002 mm
|
|
R MPE (Repeatability):
|
0,002 mm
|
|
Type:
|
EN ISO Standard
|
|
Measuring force:
|
0,4-0,7 N
|
|
Protection:
|
IP42
|
|
Mass:
|
170 g
|
|
Display:
|
LCD, character height 11 mm rotatable 330°
|
|
Alarm:
|
Low voltage, counting value composition error, overflow error, tolerance limit setting error
|
|
Stem Ø:
|
8 mm
|
|
Contact point:
|
Carbide ball, thread M 2.5 x 0.45 mm
|
|
Battery life:
|
approx. 7000 hours
|
|
Power supply:
|
1 battery SR-44
|
|
DATA/HOLD:
|
Yes
|
|
Data output:
|
Yes
|
|
ON/OFF:
|
Yes
|
|
ZERO/ABS:
|
Yes
|
|
PRESET:
|
Yes
|
|
Selectable resolution:
|
Yes
|
|
GO/±NG judgement:
|
Yes
|
|
Calculation function (with formula):
|
Yes
|
|
Counting direction switchable:
|
Yes
|
|
Digital/Analog:
|
Digital
|
|
Inch-Metric:
|
Metric
|
|
Max. response speed:
|
Unlimited
|
|
Delivered:
|
Including 1 battery
|
ไม่ระบุ
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
