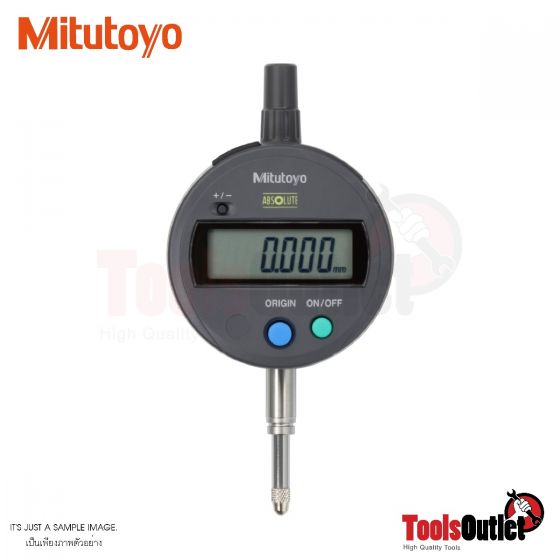

Digital Indicator ไดอัลเกจดิจิตอล Mitutoyo รุ่น 543-790-10
สินค้าหมด
รหัสสินค้า
1MIT-543-790-10
ราคาพิเศษ
฿7,597.00
ราคาปรกติ
฿10,852.86
This is a standard model of indicator that is reliable and easy to use.
The ABSOLUTE Digimatic Indicator ID-S offers you the following
benefits:
- The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
- You can access all functions by using the large, user-friendly
buttons on the front of the indicator. - Large character height of 9 mm provides good readability.
- Exceptional battery life.
| Digital/Analog: |
Digital
|
| Inch-Metric: |
Metric
|
| Range: |
12.7 mm
|
| Digital step: |
0.001 mm
|
| Max. Permissible Error E MPE (Total Range): |
0.003 mm
|
| H MPE (Hysteresis): |
0.002 mm
|
| R MPE (Repeatability): |
0.002 mm
|
| Measuring force MPL: |
≤1.5 N
|
| Protection: |
IP42
|
| Type: |
EN ISO Standard
|
| Mass: |
150 g
|
| Display: |
LCD, character height 9 mm
|
| Max. response speed: |
Unlimited
|
| Alarm: |
Low voltage, sensor error, ABS data composition error
|
| Stem ∅: |
8 mm
|
| Contact point: |
Carbide ball, thread: M2.5x0.45
|
| Power supply: |
1 battery SR44
|
| Battery life: |
Approx. 18000 hours (0.001 mm type),
approx. 20000 hours (0.01 mm type) |
| Remarks: |
This digital indicator has data output but no integrated data button so for USB Input Tool Direct Cable (see optional accessory) the USB-ITPAK Software is required.
|
| Digimatic data output: |
Yes
|
| ON/OFF: |
Yes
|
| ORIGIN (ABS-Zero): |
Yes
|
| Counting direction switchable: |
Yes
|
| Digital Scale: |
Electrostatic capacitance type absolute linear encoder
|
 |
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
