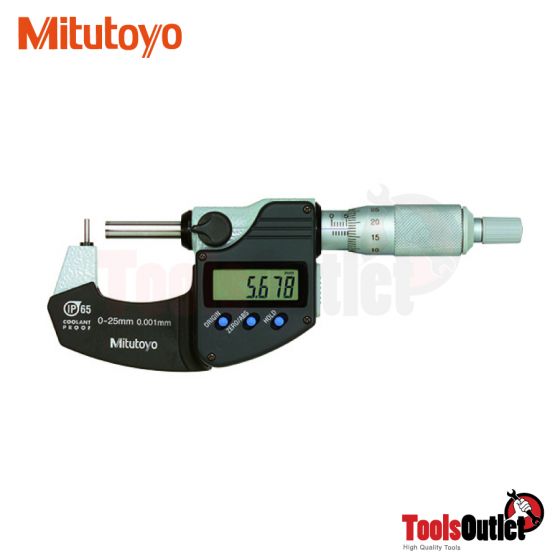

Digital Micrometer ไมโครดิจิตอลปากมล Mitutoyo รุ่น 395-261-30
สินค้าหมด
รหัสสินค้า
1MIT-395-261-30
ราคาพิเศษ
฿9,306.86
ราคาปรกติ
฿13,295.51

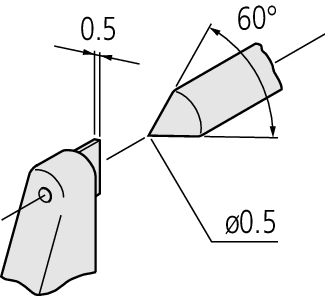

This Crimp Height Micrometer that features a flat anvil and pointed spindle offers you the following benefits:
- It allows you to measure the crimped height of electrical contacts.
- Outstanding accuracy and oil-resistant material used for all plastic parts
- Excellent resistance against water and dust (IP65 protrction level) enables this micrometer to be used in machining situations that include splashing coolant fluid.
| Order No. | 395-261-30 |
|
Range:
|
0 - 20 mm
|
|
Digital step:
|
0,001 mm
|
|
Maximum Permissible Error J MPE:
|
±3 µm
|
|
Measuring force:
|
3 - 8 N
|
|
Mass:
|
270 g
|
|
Display:
|
LCD, character height 7.5 mm
|
|
Measuring face:
|
Hardened steel, micro-lap finish
|
|
Measuring spindle:
|
With spindle lock,
ø 6.35 mm, spindle pitch 0.5 mm (342-271-30, 112-401) without spindle lock ø 6.35 mm, spindle pitch 10 mm (342-451-20) |
|
Scale:
|
Thimble and sleeve satin chrome finish, ø18 mm
|
|
Power supply:
|
1 battery SR-44
|
|
Battery life:
|
Approx. 2,4 years (342-271-30),
5 years (342-451-20) |
|
Inch-Metric:
|
Metric
|
|
Digital/Analog:
|
Digital
|
|
Battery life:
|
Approx. 2,4 years
|
|
Delivered:
|
Including box, 1 battery
|
 |
 |
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
