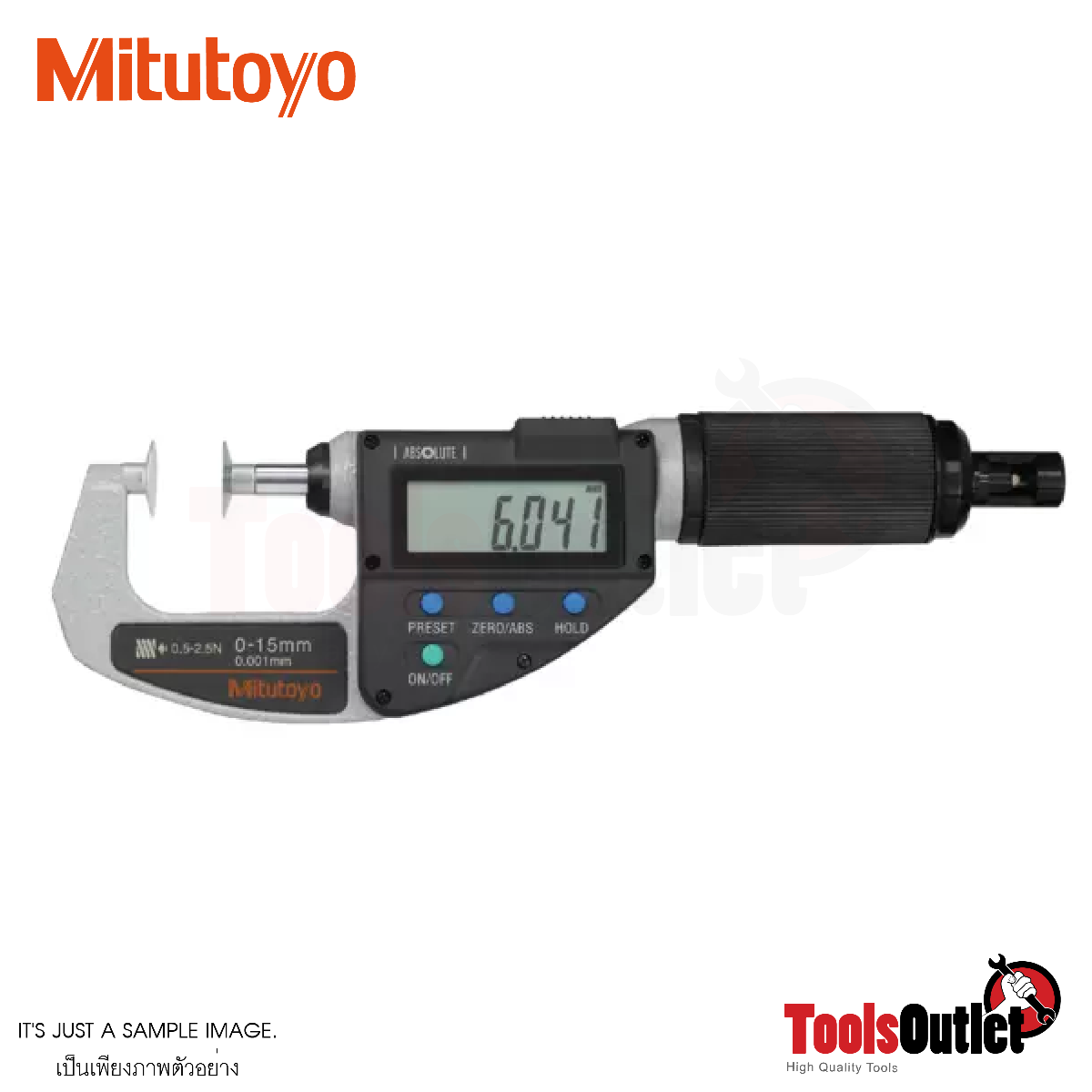

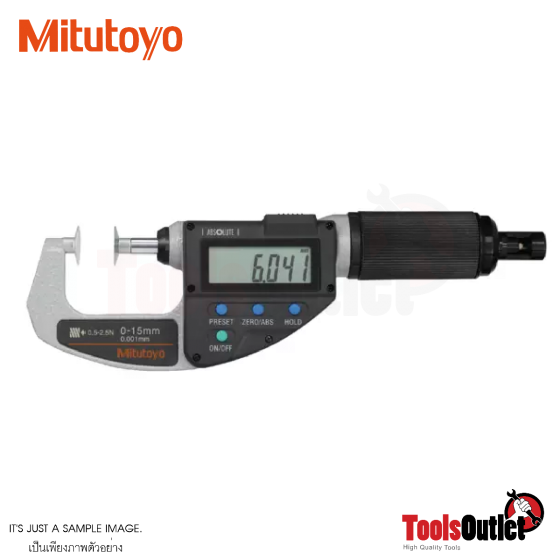

Disk Micrometers ไมโครมิเตอร์ดิจิตอล (0.001X0-15มิล) Mitutoyo รุ่น 227-221-20
สินค้าหมด
รหัสสินค้า
1MIT-227-221-20
ราคาพิเศษ
฿20,811.50
ราคาปรกติ
฿29,730.71
The ABSOLUTE Digimatic Disc Micrometer Quickmike allows you to measure with a fast spindle feed of 10 mm per thimble rotation.
It offers you the following benefits:
- Suitable for measuring felt, rubber, cardboard, fabric etc.
- Suitable to measure "root tangent length" of spur gears and helical gears.
- With a non-rotating spindle and disc-shaped measuring surface.
- Measuring force is adjustable for various kinds of workpieces (series 227)
| Quickmike type adjustable measuring force (LCD) |
|
| Code No | 227-221-20 |
| Range (mm) | 0 - 15 |
| Resolution (mm) | 0.001 |
| Anvil dia (mm) | ø14.3 |
| Maximum permissible error J MPE (µm |
±4 |
| Flatness (µm) | 1 |
| Parallelism (µm) | 4 |
| Measuring force (N) | 0.5 - 2.5 |
|
|
c : 5.2 mm |
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
