Load Cell โหลดเซลล์ IMADA รุ่น LM-200N
สินค้าหมด
รหัสสินค้า
IMA-LM-200N
ราคาพิเศษ
฿12,626.00
ราคาปรกติ
฿18,037.14

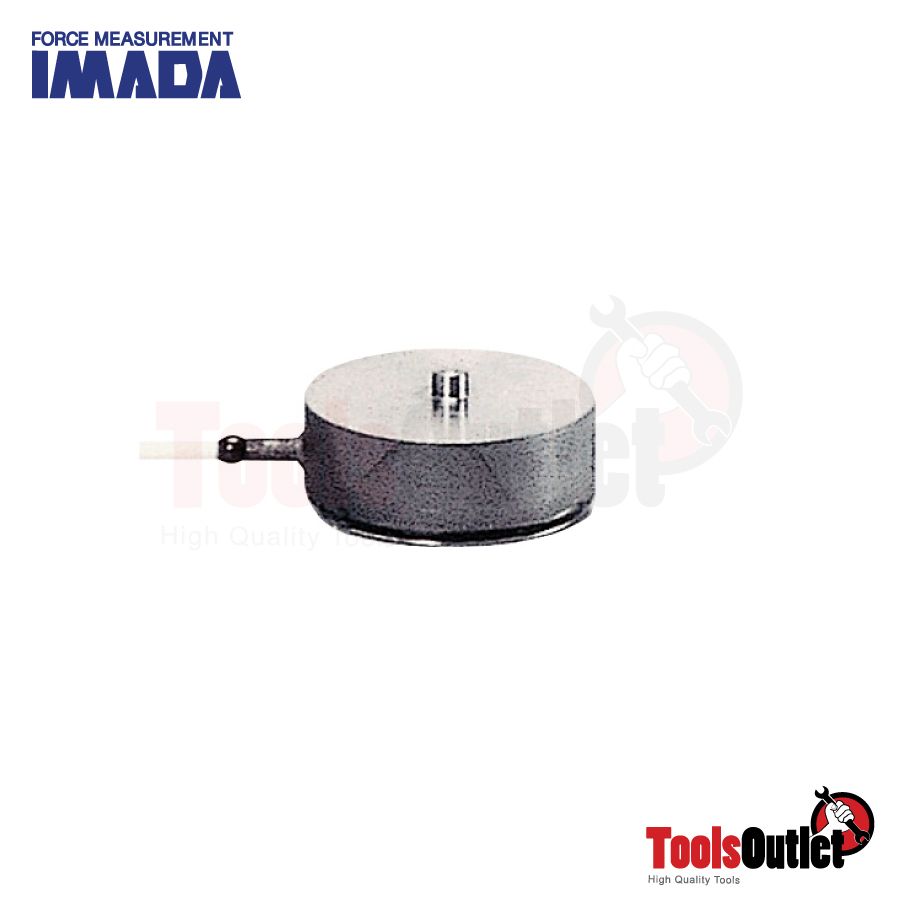

Coin Shaped Load Cell
LM series
Load cell LM series is coin shaped type for compression testings with 10N to 20kN capacity. It can be used in a wide range of testing applications such as compression testing using a pressing machine or a robot arm.
- Facilitates the compression testing in narrow space or unstable environment due to its thin and compact design
- A wide range of capacity from 10N to 20kN and compact design
- Separated sensor model force gauges with a dedicated sensor available for a certain measurement purpose
- eZ-Connect series (interchangeable sensors for using with one amplifier eZT) available for a wide range of testings
- Custom-made model with flexible arm available for safety and certainly reaching the testing position
| Model | LM series |
| Capacity | 10N to 20kN |
| Accuracy | 10N to 10kN: +/-2.0%F.S. or lower 20kN: +/-3.5%F.S. or lower |
| Size | Approx.Ø12XH4~Ø21XH10mm |
| Cable Length | 10N to 2000N: Approx. 2m 5000N to 20kN: Approx. 3m |
| Model | Capacity |
| LM-200N | 200N |
ไม่ระบุ
| ยี่ห้อ อุปกรณ์สำหรับงานแลป | IMADA |
|---|---|
| BRANDS | IMADA |
