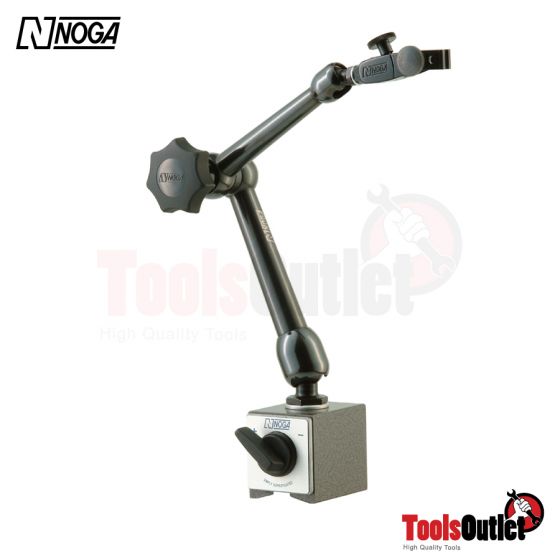

HOLDER SYSTEM ขาตั้งแม่เหล็กสำหรับไดอัลเกจ NOGA รุ่น MG61003
New Fine adjustment on Top with universal swivel clamp.
- Unique central locking mechanism with Noga designed spring loaded bearing.
- Dial gauge holder is 3 dimensional.
- Most powerful on/off magnetic base.
- Instant fixation in any position.
- Fast and easy to set up gauges into required position.
- Black finished Arms.
| Order No. | MG61003 |
| Clamp Holds : | 6mm, 8mm,3/8"and dovetail |
| Bottom thread | Ext. M8 |
| Weight : | 1.90 Kg |
| Bottom Arm : | 133mm |
| Top Arm : | 133mm |
| Total Length : | 317mm |
| Magnet Force : | 800 N |
| Magnet Width : | 50mm |
| Magnet Length : | 60mm |
| Magnet Height : | 55mm |
ไม่ระบุ
| ยี่ห้อ เครื่องมือวัด | NOGA |
|---|---|
| BRANDS | NOGA |
