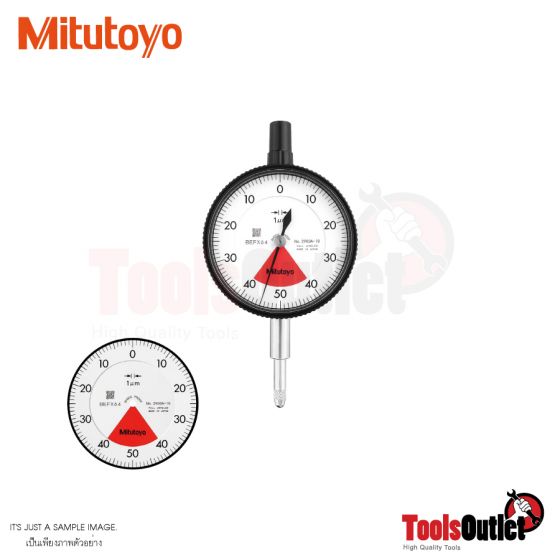

Dial Gauge ไดอัลเกจ Mitutoyo รุ่น 2900A-10 (0-0.08X0.001 มม.)
สินค้าหมด
รหัสสินค้า
1MIT-2900A-10
ราคาพิเศษ
฿3,019.54
ราคาปรกติ
฿4,313.63
Graduation 0,001 mm
This is a one revolution, metric dial indicator. It offers you the following benefits:
- Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
- No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.
- It eliminates the possibility of reading errors due to miscounting multiple revolutions.
| ORDER NO. | 2900A-10 |
|
Range:
|
0,08 mm
(plunger stroke: 4 mm) |
|
Range
per rev.: |
0.1 mm
|
|
Graduation:
|
0.001 mm
|
|
Scale:
|
50-0-50
|
|
MPE any 1/10
revolution: |
2 µm
|
|
MPE measuring range:
|
3 µm
|
|
H MPE (Hysteresis):
|
2 µm
|
|
R MPE (Repeatability):
|
1 µm
|
|
Measuring force:
|
0,4-1,4 N
|
|
Mass:
|
149 g
|
|
One revolution:
|
Yes
|
|
Shockproof:
|
Yes
|
|
Jeweled bearing:
|
Yes
|
|
Digital/Analog:
|
Analog
|
|
Inch-Metric:
|
Metric
|
|
Type:
|
EN ISO Standard
|
|
Stem:
|
8 mm
|
|
Contact point:
|
Carbide tipped, thread: M 2.5 x 0.45 mm
|
|
Delivered:
|
with certificate of inspection
|
 |
A: 47.2 mm B: 66 mm C: 57 mm D: 18.1 mm E: 20 mm F: 16.9 mm G: 20.6 mm I: 7.6 mm |
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
