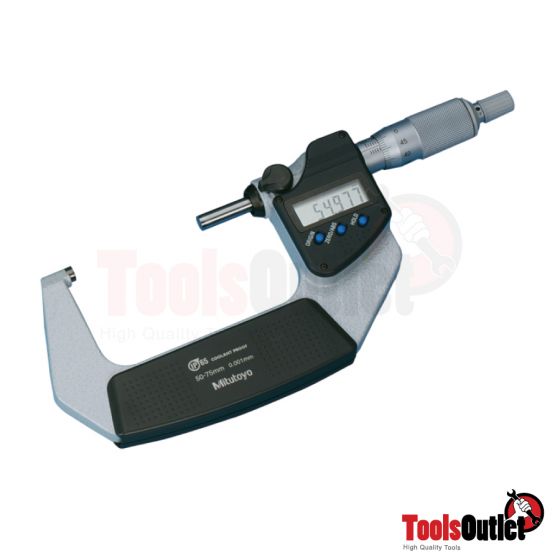

Micrometer Digital ไมโครมิเตอร์ดิจิตอล Mitutoyo รุ่น 293-232-30

สินค้าหมด
รหัสสินค้า
1MIT-293-232-30
ราคาพิเศษ ฿7,122.99 ราคาปรกติ ฿10,175.70

This IP65 micrometer offers outstanding accuracy, with and without data output, is highly robust and offers the following benefits:

  • Oil-resistant material used for all plastic parts
  • Extraordinary battery life of 2,4 years*
  • Excellent resistance against water and dust enables this micrometer to be used in machining situations that include splashing coolant fluid.
ORDER NO. 293-232-30
Range:
50 - 75 mm
Parallelism:
2 µm
Digital step:
0,001 mm
Maximum Permissible Error J MPE:
±2 µm
Measuring force:
5 - 10 N
Mass:
470 g
Data output:
Yes
Display:
LCD, character height 7.5 mm
Measuring face:
Carbide-tipped, micro-lap finish
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Power supply:
1 battery SR-44
Battery life:
Approx. 2,4 years for models ≤100 mm
1,2 years for >100 mm
2 x PRESET (over 100 mm):
Yes
Digital/Analog:
Digital
Inch-Metric:
Metric
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Battery life:
Approx. 2,4 years
Delivered:
including Box, key, 1 battery, gauge block (from 25 mm upward), up to 50 mm measuring range with factory certificate

ไม่ระบุ
ข้อมูลเพิ่มเติม
ยี่ห้อ เครื่องมือวัด Mitutoyo
BRANDS MITUTOYO
range micrometer 50 - 75 mm.
Graduation 0.001 mm.
