Micrometer Digital ไมโครมิเตอร์ดิจิตอลปาก SPLINE Mitutoyo รุ่น 331-252-30
สินค้าหมด
รหัสสินค้า
1MIT-331-252-30
ราคาพิเศษ
฿11,527.11
ราคาปรกติ
฿16,467.30

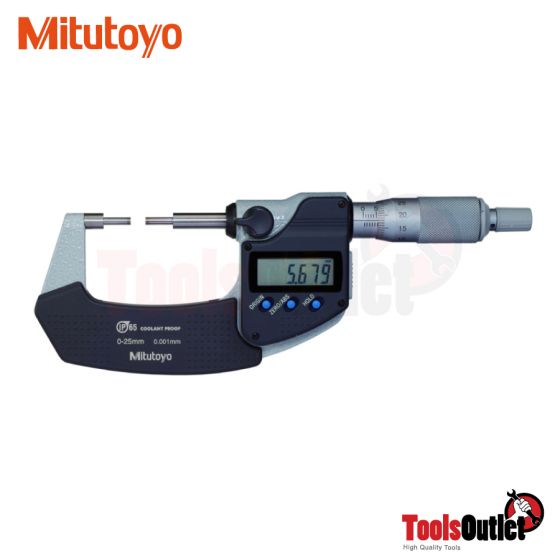

This Digimatic Spline Micrometer makes it easy for you to measure grooves and shaped parts. It offers you the following benefits:
- Outstanding accuracy and oil-resistant material used for all plastic parts (IP65)
- Anvil and spindle are of small diameter for measuring splined shafts, slots and keyways.
- Excellent resistance against water and dust (IP65 protection level) enables this micrometer to be used in machining situations that include splashing coolant fluid.
| ORDER NO. | 331-252-30 |
|
Range:
|
25 - 50 mm
|
|
Parallelism:
|
2 µm
|
|
Digital step:
|
0,001 mm
|
|
Maximum Permissible Error J MPE:
|
±2 µm
|
|
Anvil / Spindle:
|
Type A, D=3 mm
|
|
Measuring force:
|
5 - 10 N
|
|
Mass:
|
470 g
|
|
Display:
|
LCD, character height 7.5 mm
|
|
Measuring face:
|
Carbide-tipped, micro-lap finish, stepped
|
|
Measuring spindle:
|
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
|
|
Scale:
|
Thimble and sleeve satin chrome finish, ø18 mm
|
|
Power supply:
|
1 battery SR-44
|
|
Battery life:
|
Approx. 2,4 years
|
|
Inch-Metric:
|
Metric
|
|
Digital/Analog:
|
Digital
|
|
Battery life:
|
Approx. 2,4 years
|
|
Delivered:
|
Including box, setting standard (from 25 mm upward), key, 1 battery
|
 |

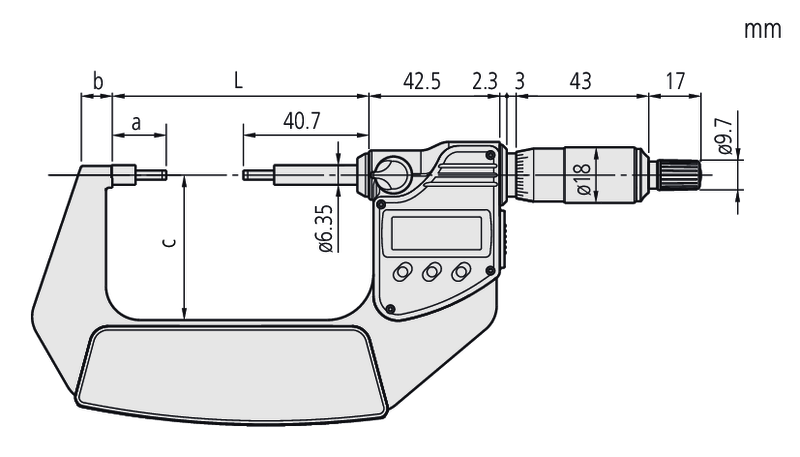

L: 83.2 mm a: 17.5 mm b: 10.1 mm c: 47 mm |
 |
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
