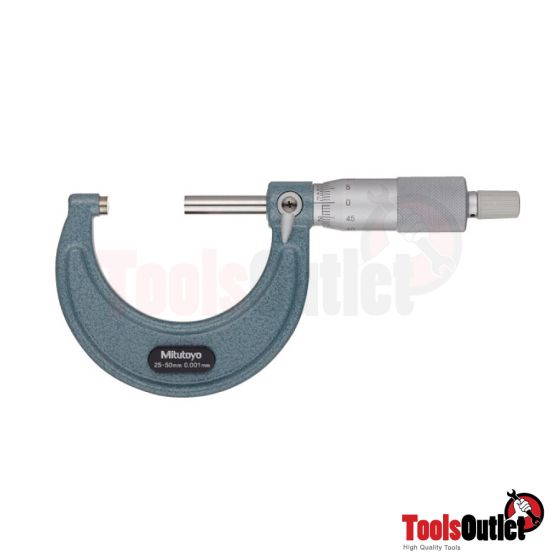

Micrometer ไมโครมิเตอร์ Mitutoyo รุ่น 103-130
Lightweight workshop design with baked-enamel-finished frame.
- Equipped with Ratchet Stop for constant measuring force.
Outside Micrometer Series 103
Range 25 – 50 mm
Graduation 0.001 mm
Order No. 103-130
| ORDER NO. | 103-130 |
| Range: | 25 - 50 mm |
| Accuracy: | ±2 µm |
| Flatness: | 0,6 μm |
| Mass: | 215 g |
| Measuring surfaces: | Carbide-tipped, micro-lap finish |
| Parallelism: | (2+L/100) μm, L = max. range (mm) |
| Digital/Analog: | Analog |
| Graduation: | 0,001 mm |
| Scale: | Thimble and sleeve satin chrome finish, ø18 mm |
| Measuring spindle: | With spindle lock, ø6,35 mm , spindle pitch 0,5 mm |
| Remarks: | Ratched Stop |
| Measuring force: | 5 - 10 N |
| Delivered: | Including box, key, certificate of inspection |
| Inch-Metric: | Metric |
ไม่ระบุ
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
| range micrometer | 25 - 50 mm. |
| Graduation | 0.001 mm. |
